Fiber NIC

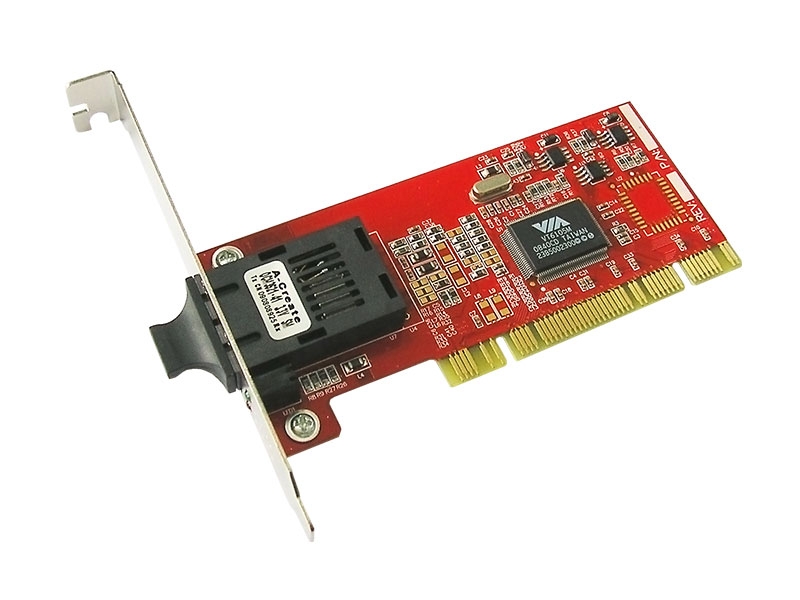

100Base-Fx PCI Fiber NIC (OPT-910 series)

This adapter features fiber connectors for a 100Mbps IEEE 802.3u Ethernet network connection over optical fiber cable. The series provides different fiber transceiver types supporting short, middle, and long reach applications.
    ●Supports short, middle, and long reach fiber applications
    ●Supports diversified fiber connectors
    ●Far End Fault support on the 100BASE-FX port
    ●Optional PXE/RPL Boot ROM for network operating systems
    Driver Support Windows 2003/XP/7/8/10, Netware Server, Linux
    Standards
    IEEE 802.3x Full-Duplex Flow Control
    IEEE 802.3u 100Base-TX/FX
    Host Interface 32-bit PCI Version 2.1 / 2.2
    Network Interface 1 x Optical port (1x9) 100Base-Fx
    Network Cables
    50/125 µm multi-mode fiber up to 2km
    62.5/125 µm multi-mode fiber up to 1km
    9/125 µm single-mode fiber up to 120km
    LED Indicators Power Status, FX Link/Act
    Dimensions 120 x 53 mm
    Environmental Limits
    Operating Temperature: 0°C to 50°C
    Storage Temperature: -20°C to 70°C
    Relative Humidity: 5% to 90% non-condensing
    Warranty 3 years
    Model No. Description
    OPT-910M 100M, Multi-mode, 2km, PCI, SC/ST Option
    OPT-910S 100M, Single-mode, 25km, PCI, SC/ST Option
