Fiber NIC

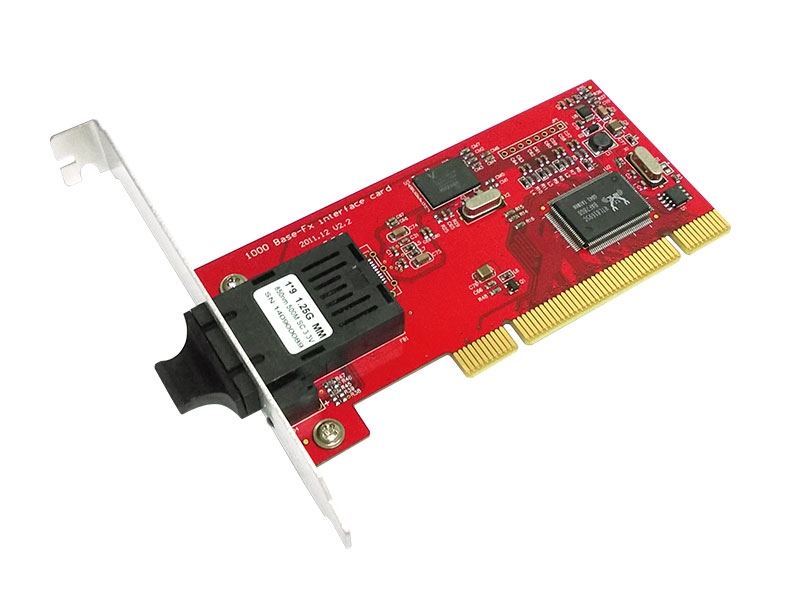

1000Base-Fx PCI Fiber NIC (OPT-921 series)

The 1000BASE-X Gigabit Ethernet PCI Adapter is a 32-bit LAN adapter for use in personal computers with PCI computer bus slots. This adapter features a mini-GBIC fiber connector (SFP) for a 1000 Mbps IEEE 802.3z Ethernet network connection over optical fiber cable. The series provides different fiber transceiver types supporting short, middle, and long reach applications.
    ●Supports 32-bit 33/66MHz PCI of Rev.2.1/2.2/2.3 specification
    ●IEEE 802.3z 1000Base-SX/LX compliant
    ●Provides Tx 8K / Rx 64KB RAM buffer
    ●Supports full duplex operation up to 2000Mbps data rate over fiber
    ●Supports full duplex flow control
    ●Plug-and-Play installation
    ●Provides LED indicators for easy diagnostic
    ●Provides SFP to support variety of fiber transceivers
    ●Complete driver support for most operating systems
    ●Supports 802.1Q VLAN tagging
    ●Supports Jumbo Frame up to 7k bytes
    Driver Support
    Windows 2000/2003/XP/7/8/10, Netware Server, Linux
    Standards
    IEEE 802.3z 1000Base-SX/LX
    Host Interface 32-bit PCI Version 2.1 / 2.2 / 2.3
    Network Interface 1 x Optical port (SFP/1x9 Option) 1000Base-FX
    Network Cables
    50/125 µm multi-mode fiber up to 500m
    62.5/125 µm multi-mode fiber up to 220m
    9/125 µm single-mode fiber up to 120km
    LED Indicators Power Status, FX Link/Act
    Dimensions 119 x 58 mm
    Environmental Limits
    Operating Temperature: 0°C to 50°C
    Storage Temperature: -20°C to 70°C
    Relative Humidity: 5% to 90% non-condensing
    Warranty 3 years
    Model No. Description
    OPT-921M Gigabit Ethernet Adapter, Multi-mode, 0.5km, SC/ST option
    OPT-921S Gigabit Ethernet Adapter, Single-mode, 20km, SC/ST option
    OPT-921 Gigabit Ethernet Adapter with SFP Support
