Fiber NIC

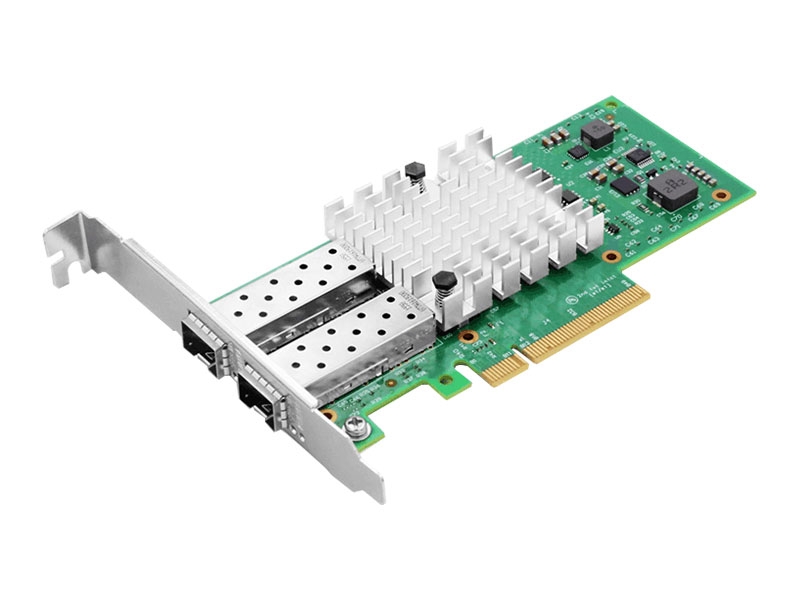

2*10GBase-Fx PCI-E Fiber NIC (OPT-960)

The adapter provides enhancement of hardware, such as intelligent queue technologyused for optimizing multi-core processor and supports the load balancing on it,which can achieve the extendible performance with higher level of 10GE.Meanwhile, it also provides the Intel virtualization technology includingnetwork level, which can significantly improve the overall system performancein a virtual server environment. Intel VT-c includes optimization features of anumber of hardware, which can significantly reduce the bottleneck of I/O,improve the throughput as well as reducing delay.
    ●High bandwidth 10Gbps Network Speed
    ●Support flow control of IEEE802.x
    ●Supports PCI e x8 bus
    ●Compliant with PCIe Rev.3.0 Interface
    ●Supports Jumbo Frame
    ●Support IEEE 802.q VLAN tagging
    ●Supports IP headers and TCP / UDP checksums offload
    ●Linkage/LED indicator for activity status
    Driver Support
    Windows2003/XP/7/8/10, Netware Server, Linux
    Host Interface PCI-e X8
    Network Interface 2 x 10GE SFP+ port
    Network Cables
    50/125 µm multi-mode fiber up to 500m
    62.5/125 µm multi-mode fiber up to 220m
    9/125 µm single-mode fiber up to 120km
    LED Indicators FX Link/Act
    Controller Intel
    Environmental Limits
    Operating Temperature: 0°C to 50°C
    Storage Temperature: -20°C to 70°C
    Relative Humidity: 5% to 90% non-condensing
    Warranty 3 years
    Model No. Description
    OPT-960 10G Ethernet Adapter with Two SFP+ Support
