Fiber NIC

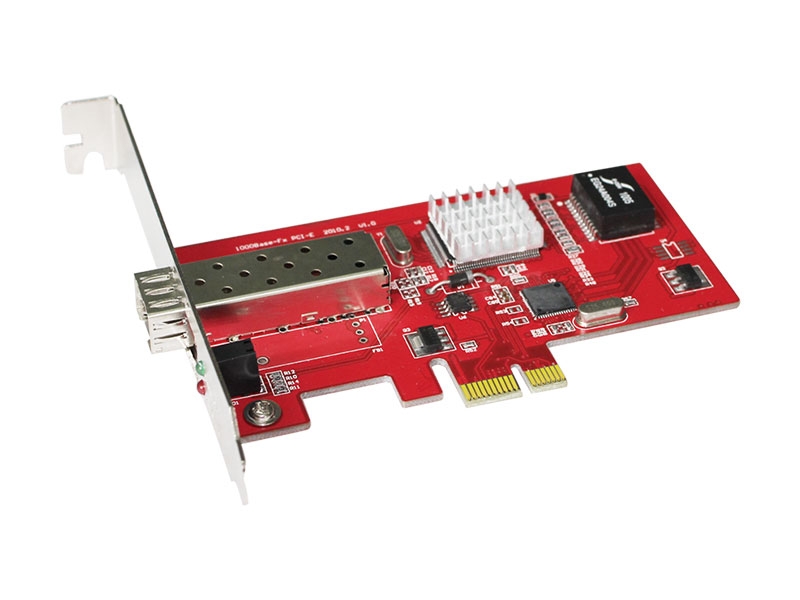

1000Base-Fx PCI-E Fiber NIC (OPT-930 series)

OPT-930 is a Fiber Gigabit Ethernet to PCIe bus adapter that fully complies with all IEEE 802.3z and 1000Base-SX/LX standards. It provides up to 2000Mbpsfull-duplex bandwidth capacity to support high-end servers. In addition, with advanced functions like VLAN filtering packet processing, the adapter provides enhanced performance, flexible configuration and secure networking for users in a standard-based environment.
    ●High bandwidth 1000Mbps Network Speed
    ●Supports Full-Duplex Mode
    ●Supports IEEE 802.3x Full-Duplex Flow Control
    ●Supports PCI e x1 bus
    ●Compliant with PCIe Rev.1.1 Interface
    ●Supports Jumbo Frame
    ●Supports High Level VLAN Filtering Function
    ●Supports IP headers and TCP / UDP checksums offload
    ●Supports on-board screening of VLAN tagged Ethernet frames
    Driver Support
    Windows2003/XP/7/8/10, Netware Server, Linux
    Standards
    IEEE 802.3z 1000Base-SX/LX
    Host Interface PCI-e X1
    Network Interface 1 x Optical port (SFP/1x9 Option) 1000Base-FX
    Network Cables
    50/125 µm multi-mode fiber up to 500m
    62.5/125 µm multi-mode fiber up to 220m
    9/125 µm single-mode fiber up to 120km
    LED Indicators Power Status, FX Link/Act
    Dimensions 108 x 65 mm
    Environmental Limits
    Operating Temperature: 0°C to 50°C
    Storage Temperature: -20°C to 70°C
    Relative Humidity: 5% to 90% non-condensing
    Warranty 3 years
    Model No. Description
    OPT-930M Gigabit Ethernet Adapter, Multi-mode, 0.5km, SC/ST option
    OPT-930S Gigabit Ethernet Adapter, Single-mode, 20km, SC/ST option
    OPT-930 Gigabit Ethernet Adapter with SFP Support
