Fiber NIC

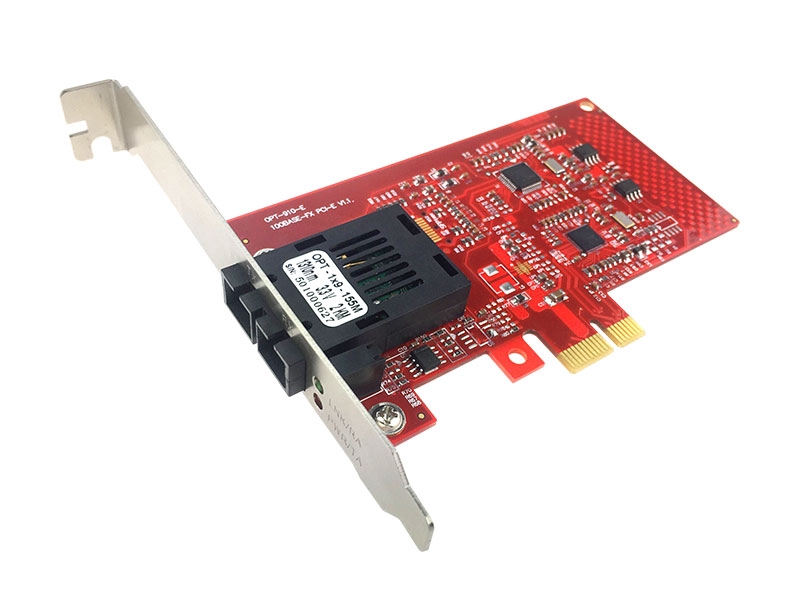

100Base-Fx PCI-E Fiber NIC (OPT-911 series)

This adapter features fiber connectors for a 100Mbps IEEE 802.3u Ethernet network connection over optical fiber cable. The series provides different fiber transceiver types supporting short, middle, and long reach applications.
    ●Supports short, middle, and long reach fiber applications
    ●Supports diversified fiber connectors
    ●Far End Fault support on the 100BASE-FX port
    ●Supports PCI e x1 bus
    ●Compliant with PCI e Rev.1.1 Interface
    ●Plug-and-Play installation
    ●Status LED for easy monitoring of device status
    Driver Support
    Windows 98SE/2000/ME/XP/7/8/10, Novell
    Windows Server 2003/2008/2012, Mac OS, Linux
    Standards
    IEEE 802.3x Full-Duplex Flow Control
    IEEE 802.3u 100Base-FX
    Host Interface PCI-e X1
    Network Interface 1 x Optical port (1x9 or SFP) 100Base-Fx
    Network Cables
    50/125 µm multi-mode fiber up to 2km
    62.5/125 µm multi-mode fiber up to 1km
    9/125 µm single-mode fiber up to 120km
    LED Indicators Power Status, FX Link/Act
    Dimensions 110 x 68 mm
    Environmental Limits
    Operating Temperature: 0°C to 50°C
    Storage Temperature: -20°C to 70°C
    Relative Humidity: 5% to 90% non-condensing
    Warranty 3 years
    型号 规格
    OPT-911M 100M, Multi-mode, 2km, PCI-E, SC/ST optional
    OPT-911S 100M, Single-mode, 25km, PCI-E, SC/ST optional
    OPT-911 100M, with SFP Support,PCI-E
