Media Converter

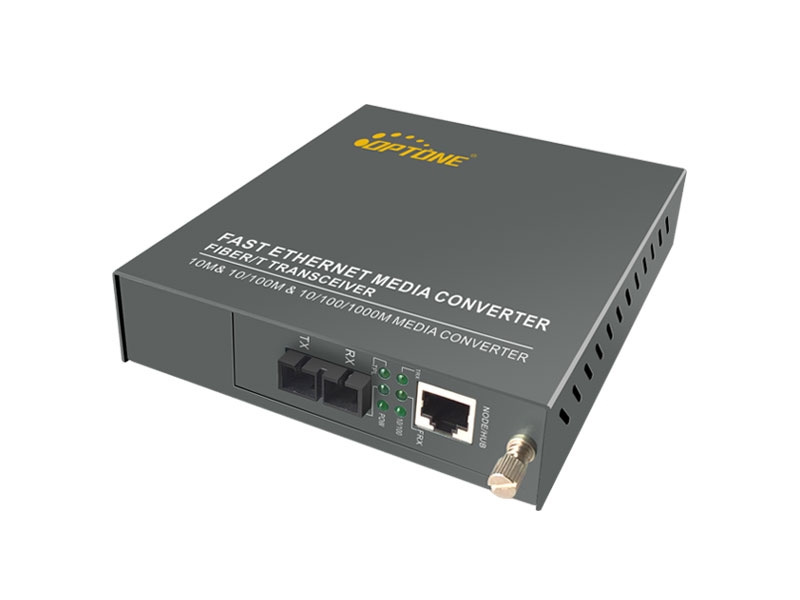

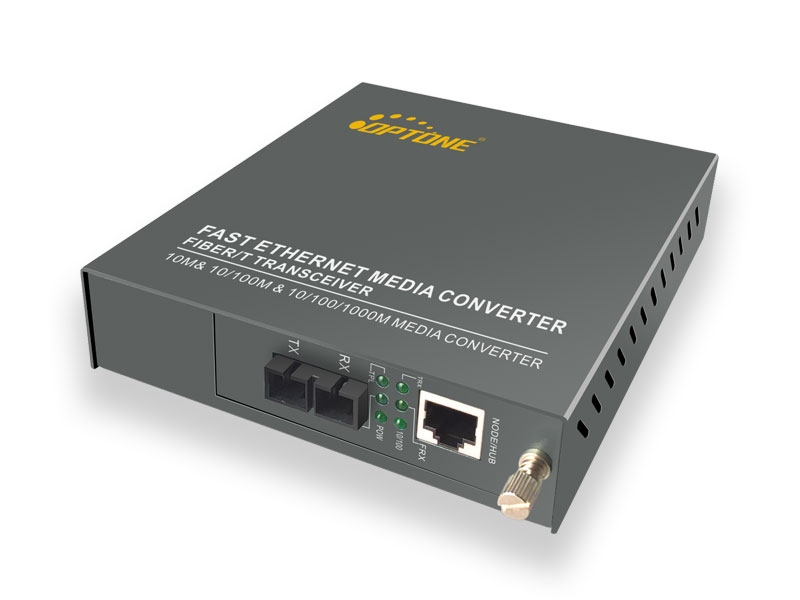

Managed 1*10/100M TX and 1*100M FX (OPT-M1100 series)

The OPT-M1100 Series is designed to make conversion between 100Base-FX to 10/100Base-TX Fast Ethernet. With SNMP agent and web-based management, the network administrator can logon the converter to monitor, configure and control the activity of each port. In addition, the converter implements bandwidth rating management capability via the intelligent software. The overall network management is enhanced, and the network efficiency is also improved to accommodate and deliver high bandwidth applications.
    ●Complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3x auto-negotiation
    ●Extends distances ranging from 2km (multi-mode fiber) to 120km (single mode fiber)
    ●Auto-negotiation of duplex(HDX/FDX) on RJ-45 port
    ●Auto MDI/MDI-X support on RJ-45 port
    ●Rate Limit function, 32Kbps
    ●Supporting Loopback, precisely locating the failure, convenient for link test
    ●Supporting LFP, quickly locates the failure
    ●Supporting remote power off alarming
    ●Economical management function within bandwidth
    ●Supporting Remote management
    ●Easy installation with complete LED indicators for working situation
    ●With powerful network management function, supporting WEB and SNMP
    Interface
    1 x Ethernet port (RJ45) 10/100Base-Tx
    1 x Optical port (1x9) 100Base-Fx
    Optical Port
    Available for 1310nm and 1550nm Single mode, and 1310nm Multi mode;
    Transfer Distance: up to 120km;
    Connectors: SC/PC, ST/PC, FC/PC optional
    Fiber core: 8.3um, 8.7um, 9um and10um on single mode fiber, 50, 62.5 and 100um on multi-mode fiber
    Ethernet Port
    Available speed: force 10 Mbps, force 100 Mbps and auto-detective 10/100Mbps Full-Duplex and Half-Duplex   auto-negotiation
    Connectors: RJ-45 Connector; MDI/MDI-X connection auto-sensing
    Standard
    IEEE802.3（10Base-T）
    IEEE802.3u（100Base-TX/FX）
    IEEE802.3x（Flow control）
    SNMP v1/v2c(Simple Network Management Protocol)
    LED Indicators Power Status, Speed Status, FX Link/Act, TX Link/Act
    Power Requirement Input: 220V AC Internal Power Adapter
    Physical Characteristics
    Housing: Metal enclosure
    Dimensions: 156 x 128 x 32mm (excluding the connector and power switch)
    Weight: 0.75kg
    Environmental Limits
    Operating Temperature: 0°C to 50°C
    Storage Temperature: -20°C to 70°C
    Operating Humidity: 10% to 90% RH (non-condensing)
    Storage Humidity: 5% to 90% RH (non-condensing)
    Warranty 3 years
    Model No. Description
    OPT-M1100 10/100Base-Tx to 100Base-Fx, Multi mode, 2Km, SC/ST/FC, with Managed
    OPT-M1100S25 10/100Base-Tx to 100Base-Fx, Single mode, 25Km, SC/ST/FC, with Managed
    OPT-M1100S40 10/100Base-Tx to 100Base-Fx, Single mode, 40Km, SC/ST/FC, with Managed
    OPT-M1100S60 10/100Base-Tx to 100Base-Fx, Single mode, 60Km, SC, with Managed
    OPT-M1100S80 10/100Base-Tx to 100Base-Fx, Single mode, 80Km, SC, with Managed
    OPT-M1100S100 10/100Base-Tx to 100Base-Fx, Single mode, 100Km, SC, with Managed
    OPT-M1200S25 10/100Base-Tx to 100Base-Fx, Bi-Directional, 25Km, SC/ST/FC, with Managed
    OPT-M1200S40 10/100Base-Tx to 100Base-Fx, Bi-Directional, 40Km, SC/ST/FC, with Managed
    OPT-M1200S60 10/100Base-Tx to 100Base-Fx, Bi-Directional, 60Km, SC, with Managed
    OPT-M1200S80 10/100Base-Tx to 100Base-Fx, Bi-Directional, 80Km, SC, with Managed
