Media Converter

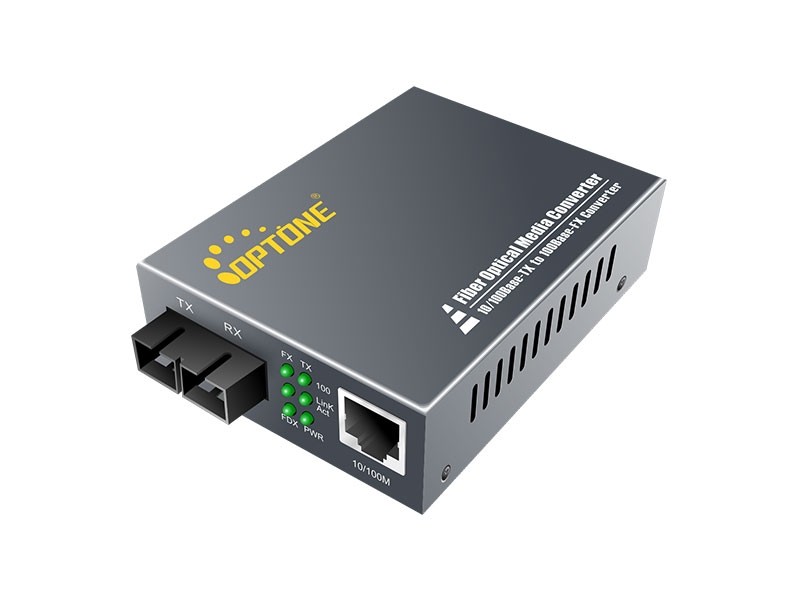

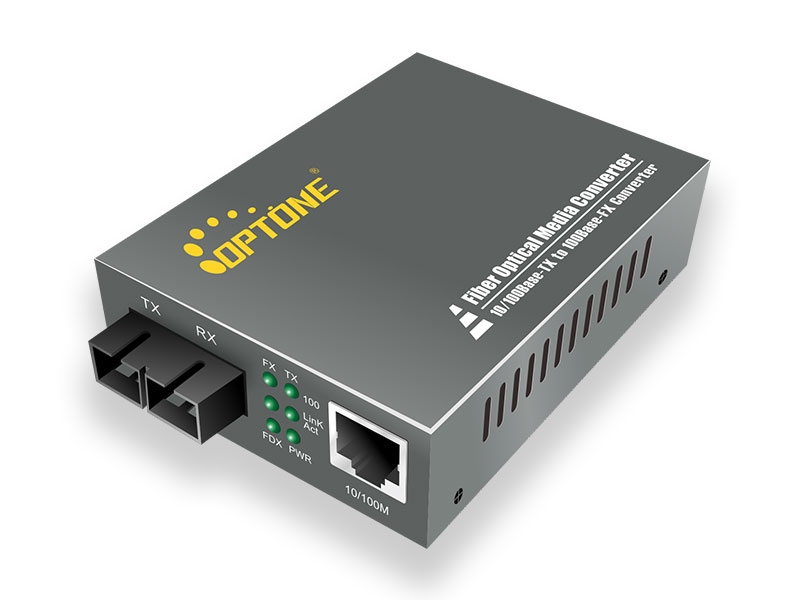

1*10/100M TX and 1*100M FX/SFP (OPT-1100 series)

The OPT-1100 series is among Optone‘s answers to expanding existing Fast Ethernetnetworks. The easy implementation and expansion of 100Base-TX/FX networks canbe further assured with this converter.
The converter is completely transparent when connected so the network performsexactly the way it did before - only now, it allows the co-existence of bothcopper and fiber mediums. Added flexibility is available with ST, SC, FC andWDM Simplex SC connectors. Extra distances are possible with the single modeversion delivering up to 80kmconnectivity per transmitted segment.
    ●Complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3x auto-negotiation
    ●Optional 19”System Chassis (OPT-R14) holds up to 14 Media Converters
    ●Extends distances ranging from 2km (multi-mode fiber) to 120km (single mode fiber)
    ●Auto-negotiation support on RJ-45 port
    ●Auto-negotiation of duplex(HDX/FDX) on RJ-45 port
    ●Auto MDI/MDI-X support on RJ-45 port
    ●Status LED‘s for TX,FX LINK/ACT, POWER,100M to easily monitor network status
    ●External power supply
    ●Supports packet length up to 1600 bytes
    Interface
    1 x Ethernet port (RJ45) 10/100Base-Tx
    1 x Optical port (1x9 or SFP) 100Base-Fx
    Optical Port
    Available for 1310nm and 1550nm Single mode, and 1310nm Multi mode;
    Transfer Distance: up to 120km;
    Connectors: SC, ST, FC optional
    Fiber core: 9/125μm on single mode fiber, 50/125μm and 62.5/125μm on multi-mode fiber
    Ethernet Port
    Standard: IEEE802.3, IEEE802.3u, IEEE802.3x
    Available speed: force 10 Mbps, force 100 Mbps and auto-detective 10/100Mbps Full-Duplex and Half-Duplex   auto-negotiation
    Connectors: RJ-45 Connector; MDI/MDI-X connection auto-sensing
    LED Indicators Power Status, FDX, Speed, FX Link/Act, TX Link/Act
    Power Requirement
    Input: 5V DC
    Physical Characteristics
    Housing: Metal enclosure
    Dimensions: 94 x 70 x 26mm (Excluding the connector)
    Weight: 0.28kg
    Environmental Limits
    Operating Temperature: 0°C to 50°C
    Storage Temperature: -20°C to 70°C
    Operating Humidity: 10% to 90% RH
    Storage Humidity: 5% to 90% RH
    Warranty 3 years
    Model No. Description
    OPT-1100 10/100Base-Tx to 100Base-Fx, Multi mode, 2Km, SC/ST/FC
    OPT-1100S25 10/100Base-Tx to 100Base-Fx, Single mode, 25Km, SC/ST/FC
    OPT-1100S40 10/100Base-Tx to 100Base-Fx, Single mode, 40Km, SC/ST/FC
    OPT-1100S60 10/100Base-Tx to 100Base-Fx, Single mode, 60Km, SC/ST/FC
    OPT-1100S80 10/100Base-Tx to 100Base-Fx, Single mode, 80Km, SC/ST/FC
    OPT-1100S100 10/100Base-Tx to 100Base-Fx, Single mode, 100Km, SC/ST/FC
    OPT-1200S25 10/100Base-Tx to 100Base-Fx, Bi-Directional, 25Km, SC/ST/FC
    OPT-1200S40 10/100Base-Tx to 100Base-Fx, Bi-Directional, 40Km, SC/ST/FC
    OPT-1200S60 10/100Base-Tx to 100Base-Fx, Bi-Directional, 60Km, SC/ST/FC
    OPT-1200S80 10/100Base-Tx to 100Base-Fx, Bi-Directional, 80Km, SC/ST/FC

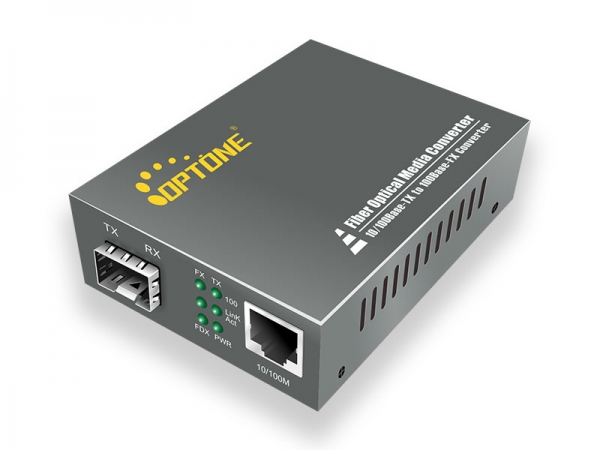

    OPT-1100A 10/100Base-Tx to FE SFP port
