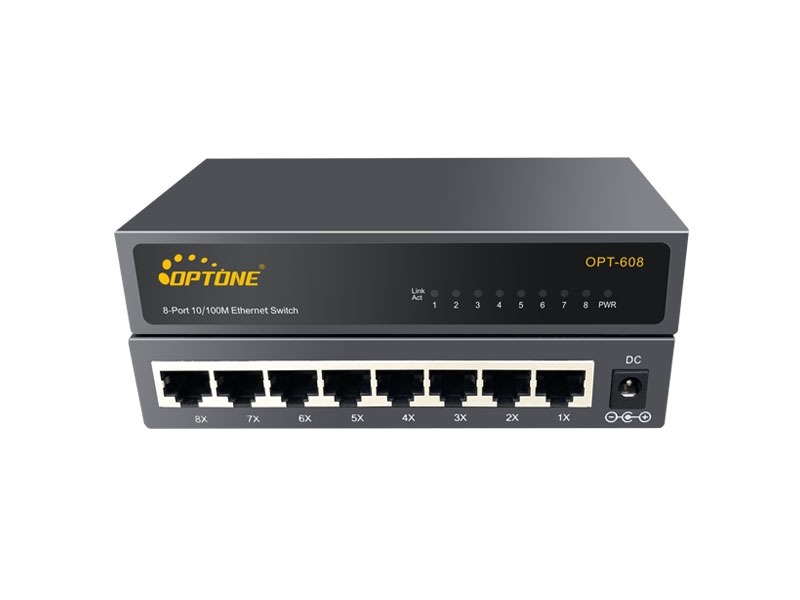

Fiber Ethernet Switch

8*10/100M TX (OPT-608)

The 8-port 10/100Base-Tx  switch , complies with the IEEE802.3, and IEEE802.3x specifications.

Besides an 8-port switch application, this model supports one MII/RMII ports for router application, which supports 7 LAN ports and one WAN port. The external MAC can monitor or configure this model by accessing MII registers through SMI.
    ●Comply with IEEE 802.3 10Base-T Standard
    ●10/100Mbps Auto-Negotiation in TP port
    ●Auto Cross over for MDI/MDIX in TP port
    ●Rack Mountable
    ●Optional VLAN
    Switch Type Fast Ethernet Switch
    Layer 2
    Data Rate 10Mbps/100Mbps
    Interface 8 x Ethernet port (RJ45) 10/100Base-Tx
    Duplex mode Full-Duplex and Half-Duplex   auto-negotiation
    VLAN Optional
    MAC Table 8K
    LED Link/Act, Speed, Power
    Power 12V 0.5A
    Environmental Limits
    Operating Temperature: 0°C to 50°C
    Storage Temperature: -20°C to 70°C
    Operating Humidity: 10% to 90% RH
    Storage Humidity: 5% to 90% RH
    Model No. Description
    OPT-608 8*10/100Base-Tx Ethernet Switch, Optional VLAN
