Fiber Ethernet Switch

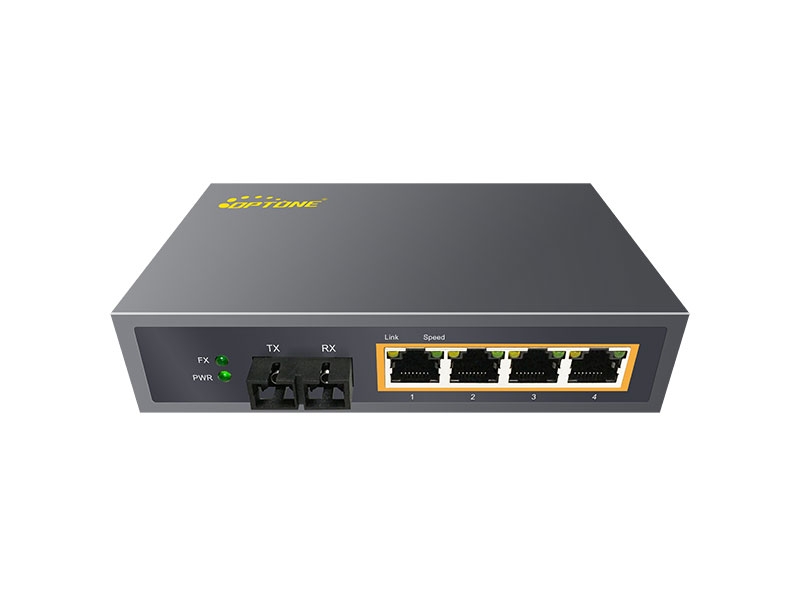

1*10/100M TX and 1*100M FX (OPT-105 series)

The OPT-105 series is among Optone‘s answers to expanding existing Fast Ethernet networks. The easy implementation and expansion of 100Base-TX/FX networks can be further assured with this converter.
The switch is completely transparent when connected so the network performs exactly the way it did before - only now, it allows the co-existence of both copper and fiber mediums. Added flexibility is available with ST, SC, FC and SFP connectors. Extra distances are possible with the single mode version delivering up to 80km connectivity per transmitted segment.
    ●Complies with IEEE802.3, IEEE802.3u standard
    ●Provides 4-port 10/100M RJ45 and 1-port fiber ports
    ●Supports auto duplex(HDX/FDX) auto MDI/MDIX function
    ●Auto MDI/MDI-X support on RJ-45 port
    ●Supports jumbo frame size 2K bytes
    ●Status LED for easy monitoring of device status
    ●Fanless design, Natural cooling
    Interface
    4 x Ethernet port (RJ45) 10/100Base-Tx
    1 x Optical port (1x9 or SFP) 100Base-Fx
    Optical Port
    Available for 1310/1490/1550nm Single mode, 1310nm Multi mode
    Transfer Distance: up to 120km
    Connectors: SC, FC, ST and SFP optional
    Fiber core: 9/125μm on single-mode fiber; 50/125μm and 62.5/125μm on multi-mode fiber
    Ethernet Port
    Cable: Cat 5/5e/6 UTP cable
    Available speed: force 10Mbps, force 100Mbps and auto-detective 10/100Mbps. Full-Duplex and Half-Duplex auto-negotiation
    Connectors: RJ-45 Connector; MDI/MDI-X connection auto-sensing
    Standard
    IEEE802.3（10Base-T）
    IEEE802.3u（100Base-TX/FX）
    LED Indicators Power Status, Speed, FX Link/Act, TX Link/Act
    Power Requirement 12V DC, External AC to DC adapter
    Physical Characteristics
    Housing: Metal enclosure
    Dimensions: 144 x 95 x 32mm
    Weight: 0.31kg
    Environmental Limits
    Operating Temperature: -10°C to 70°C
    Storage Temperature: -20°C to 70°C
    Operating Humidity: 10% to 90% RH (non-condensing)
    Storage Humidity: 5% to 90% RH (non-condensing)
    Warranty 3 years
    Model No. Description
    OPT-105M02 4*10/100Base-Tx to 100Base-Fx, Multi mode, 2Km, SC/ST/FC optional
    OPT-105S25 4*10/100Base-Tx to 100Base-Fx, Single mode, 25Km, SC/ST/FC optional
    OPT-105S40 4*10/100Base-Tx to 100Base-Fx, Single mode, 40Km, SC/ST/FC optional
    OPT-105S80 4*10/100Base-Tx to 100Base-Fx, Single mode, 80Km, SC/ST/FC optional
    OPT-105W25 4*10/100Base-Tx to 100Base-Fx, Bi-Directional, 25Km, SC/ST/FC optional
    OPT-105W40 4*10/100Base-Tx to 100Base-Fx, Bi-Directional, 40Km, SC/ST/FC optional
    OPT-105W80 4*10/100Base-Tx to 100Base-Fx, Bi-Directional, 80Km, SC/ST/FC optional
    OPT-105 4*10/100Base-Tx to FE SFP port
    Optional SFP (Only OPT-105)
    SFP-SX-MM-0102 SFP，155M，1310nm，2km，LC
    SFP-LX-SM-0120 SFP，155M，1310nm，20km，LC
    SFP-LX-SM-0140 SFP，155M，1310nm，40km，LC
    SFP-ZX-SM-0180 SFP，155M，1550nm，80km，LC
