You are here：Home >> Products >> Fiber Ethernet Switch...

Fiber Ethernet Switch

< >

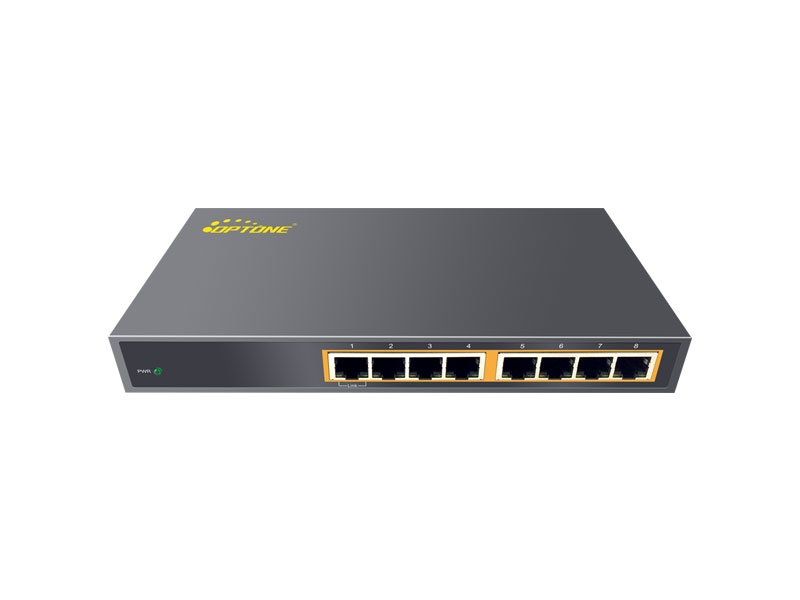

8*10/100/1000M TX (OPT-2008)

The switch provide 8-port 10/100/1000M RJ45, Switch by the United States the latest Marvell IC, stable performance and excellent quality, with a higher cost performance. For small optical Ethernet network with special needs.

●Complies with IEEE802.3, IEEE802.3u/ab/z standard

●Provides 8-port 10/100/1000M RJ45

●Supports auto duplex(HDX/FDX) auto MDI/MDIX function

●Supports 802.3x flow control

●Optional VLAN function

●Supports jumbo frame size 10K bytes

●Status LED for easy monitoring of device status

Interface	8 x Ethernet port (RJ45) 10/100/1000Base-Tx
Ethernet Port	Cable: Cat 5/5e/6 UTP cable Available speed: force 10Mbps, force 100Mbps , force 1000Mbps and auto-detective 10/100/1000Mbps. Full-Duplex and Half-Duplex auto-negotiation Connectors: RJ-45 Connector; MDI/MDI-X connection auto-sensing
Standard	IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX/FX) IEEE802.3ab (1000Base-T) IEEE802.3z (1000Base-SX/LX/CX/T) IEEE802.3x (Flow control)
Switch Properties	MAC Table: 16K Packet Buffer: 2Mbit Switching Delay: <5μs
LED Indicators	Power Status, TX Link/Act
Power Requirement	12V DC, External AC to DC adapter
Physical Characteristics	Housing: Metal enclosure Dimensions: 214 x 105 x 32mm Weight: 0.6kg
Environmental Limits	Operating Temperature: -10°C to 70°C Storage Temperature: -20°C to 70°C Operating Humidity: 10% to 90% RH (non-condensing) Storage Humidity: 5% to 90% RH (non-condensing)
Warranty	3 years

Model No.	Description
OPT-2008	8*10/100/1000Base-Tx, VLAN Optional

File Name :	Format:	Size:	Download:
OPT-2008	PDF	100.52 KB

Home

Home

Products

News

Support

About Us

Products

Contact Us

Fiber Ethernet Switch

8*10/100/1000M TX (OPT-2008)

Related products

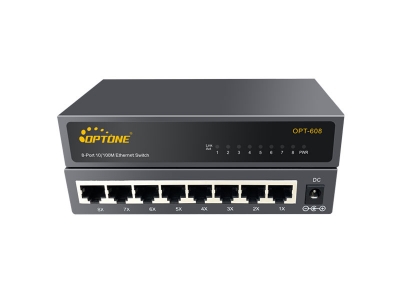

8*10/100M TX (OPT-608)
