Fiber Ethernet Switch

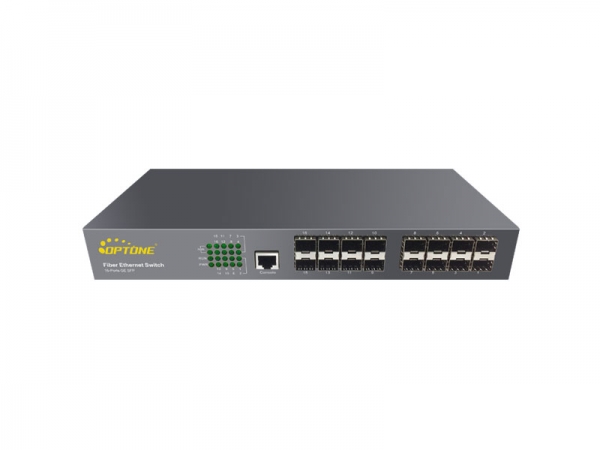

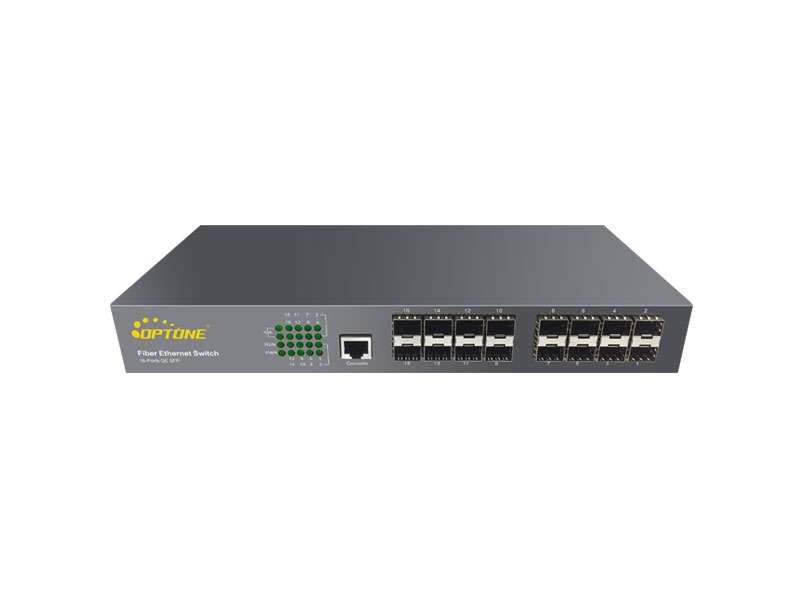

16-ports Full Gigabit L2 Unmanaged Fiber Switch (OPT-6016)

OPT-6016 L2 Fiber Ethernet Switch provide 16-port 1000M SFP fiber ports, the SFP type is flexiable according to user needing, such as 1000Base-T, 1000Base-SX, 1000Base-LX and so on. OPT-6016 L2+ provide easier manageability, stable performance and excellent quality, with a higher cost performance. For small optical Ethernet and optical network with special needs.
    ●Complies with IEEE802.3ab/z standard
    ●Provides 16-port SFP fiber port and 1-port Console ports
    ●Supports VLAN function
    ●Supports jumbo frame size 9K bytes
    ●Status LED for easy monitoring of device status
    Interface
    1 x Console port (RJ45)
    16 x Optical port (SFP) 1000Base-Fx
    Optical Port
    Available for 1310nm and 1550nm Single mode, 850nm Multi mode
    Transfer Distance: up to 120km
    Connectors: SFP
    Fiber core: 9/125μm on single-mode fiber; 50/125μm and 62.5/125μm on multi-mode fiber
    Standard
    IEEE 802.3ab(1000Base-T)
    IEEE 802.3z(1000Base-SX/LX/CX/T)
    Switch Properties
    MAC Table: 4K
    Packet Buffer: 256K
    Switching Delay: <5μs
    LED Indicators Power Status, System Status, FX Link/Act
    Power Requirement Input: AC 85~265V
    Physical Characteristics
    Housing: Metal enclosure
    Dimensions: 300 x 135 x 42.3mm
    Weight: 1.3kg
    Environmental Limits
    Operating Temperature: 0°C to 50°C
    Storage Temperature: -20°C to 70°C
    Operating Humidity: 10% to 90% RH (non-condensing)
    Storage Humidity: 5% to 90% RH (non-condensing)
    Warranty 3 years
    Model No. Description
    OPT-6016 16*GE SFP Fiber ports and 1*Console port
    Optional SFP
    SFP-SX-MM-0205 SFP,1.25G,850nm,0.5km,LC

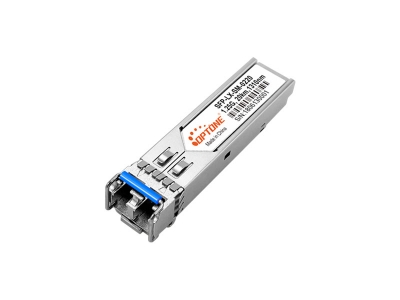

    SFP-LX-SM-0220 SFP,1.25G,1310nm,20km,LC
    SFP-LX-SM-0240 SFP,1.25G,1310nm,40km,LC
    SFP-ZX-SM-0280 SFP,1.25G,1550nm,80km,LC
