Fiber Ethernet Switch

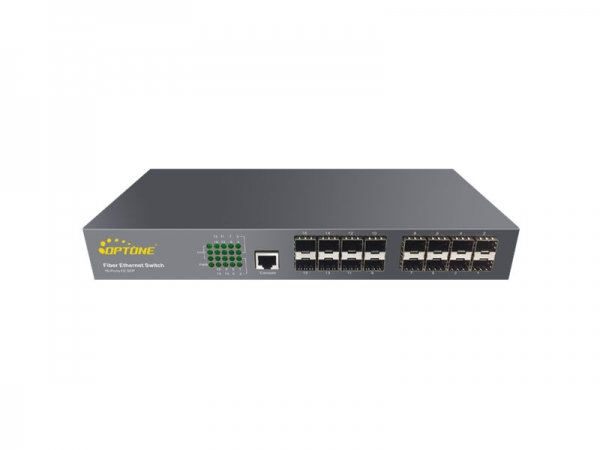

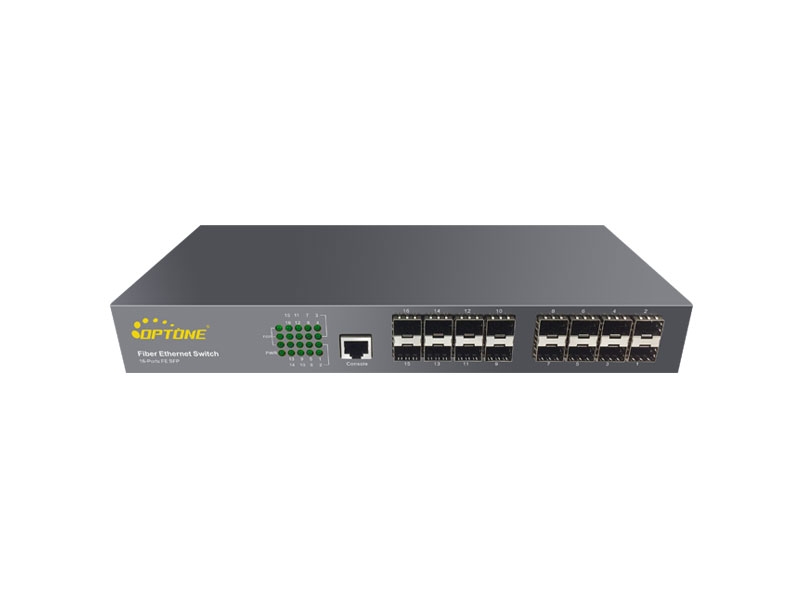

16-ports 100M L2 Unmanaged Fiber Switch (OPT-5016)

OPT-5016 L2 Fiber Ethernet Switch provide 16-port 100M SFP fiber ports, the SFP type is flexiable according to user needing, such as 100Base-SX, 100Base-LX and so on. OPT-5016 provide easier manageability, stable performance and excellent quality, with a higher cost performance. For small optical Ethernet and optical network with special needs.
    ●Complies with IEEE802.3u standard
    ●Provides 16-port FE SFP fiber port
    ●Support Max packet length 1518 bytes
    ●Status LED for easy monitoring of device status
    Interface
    16 x Optical port (SFP) 100Base-Fx
    Optical Port
    Available for 1310nm and 1550nm Single mode, 1310nm Multi mode
    Transfer Distance: up to 120km
    Connectors: SFP
    Fiber core: 9/125μm on single-mode fiber; 50/125μm and 62.5/125μm on multi-mode fiber
    Standard
    IEEE802.3u (100Base-TX/FX)
    Switch Properties
    MAC Table: 4K
    Packet Buffer: 256K
    Switching Delay: <5μs
    LED Indicators Power Status, FX Link/Act
    Power Requirement Input: AC 85~265V
    Physical Characteristics
    Housing: Metal enclosure
    Dimensions: 300 x 135 x 42.3mm
    Weight: 1.3kg
    Environmental Limits
    Operating Temperature: 0°C to 50°C
    Storage Temperature: -20°C to 70°C
    Operating Humidity: 10% to 90% RH (non-condensing)
    Storage Humidity: 5% to 90% RH (non-condensing)
    Warranty 3 years
    Model No. Description
    OPT-5016 16*FE SFP Fiber ports
    Optional SFP
    SFP-SX-MM-0102 SFP,155M,1310nm,2km,LC,MMF
    SFP-LX-SM-0120 SFP,155M,1310nm,20km,LC,SMF
    SFP-LX-SM-0140 SFP,155M,1310nm,40km,LC,SMF
    SFP-ZX-SM-0180 SFP,155M,1550nm,80km,LC,SMF
    File Name : Format: Size: Download:
    OPT-5016 PDF 105.23 KB
