Optical Modules

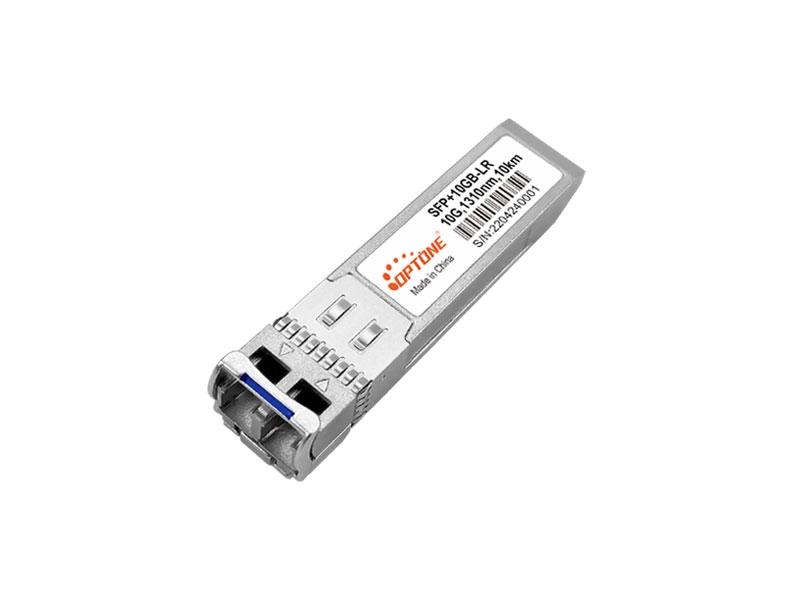

10G SFP+

10G SFP+ include SR LR ER ZR,CWDM/DWDM,BIDI series,complaint with MSA, SFF-8472, SFF-8431,with the feature of low power consumption,commerical or industrial operation temperature and high reliability,suitable for DC,Metro,Wireless and Transmission networks.
    ●Class 1 laser product EN 60825-1 standards
    ●Operating data rate up to 10.3Gbps
    ●Compliant with MSA SFP+ Specification SFF-8431
    ●Duplex or Single LC connector
    ●Hot pluggable
    ●3.3V Single Power Supply
    ●TTL signal detect indicator
    ●10GBASE-SR, LR, ER, ZR, ZX at 10.31 / 11.1Gbps
    ●1/10G and Multirate
    ●10GBASE-LW at 9.95Gbps
    ●1000 Base-LX Ethernet
    ●8XFC at 8.5Gbps
    ●4XFC at 4.25Gpbs
    ●2XFC at 2.125Gpbs
    ●1xFC at 1.0625Gbps
    ●Other optical links
    Model Rate Wavelength Distance Optical power Sensitivity Other
    SFP+10GB-SR 10G 850nm 300m -8.2~-1dBm <-9.9dBm 2xLC/MMF
    SFP+10GB-LR 10G 1310nm 10km -6~0.5dBm <-14.4dBm 2xLC/SMF
    SFP+10GB-ER 10G 1550nm 40km -1~2dBm <-14.4dBm 2xLC/SMF
    SFP+10GB-ZR 10G 1550nm 80km 0~4dBm <-23dBm 2xLC/SMF
    SFP+ BIDI-12-10D 10G TX1270nm 10km -6~-1dBm <-15dbm 1xLC/SMF
    SFP+ BIDI-13-10D 10G TX1330nm 10km -6~-1dbm <-15dBm 1xLC/SMF
    SFP+ CWDM-XX-40D 10G 1470~1610nm 40km -1~4dBm <-15.5dBm 2xLC/SMF
    SFP+ CWDM-XX-80D 10G 1470~1610nm 80km 0~5dBm <-23.5dBm 2xLC/SMF
    SFP+ DWDM-XX-40D 10G DWDM 40km -1~4dBm <-15.5dBm 2xLC/SMF
    SFP+ DWDM-XX-80D 10G DWDM 80km 0~5dBm <-23dBm 2xLC/SMF
