Video over Fiber

1 Channel Video+Data+Audio

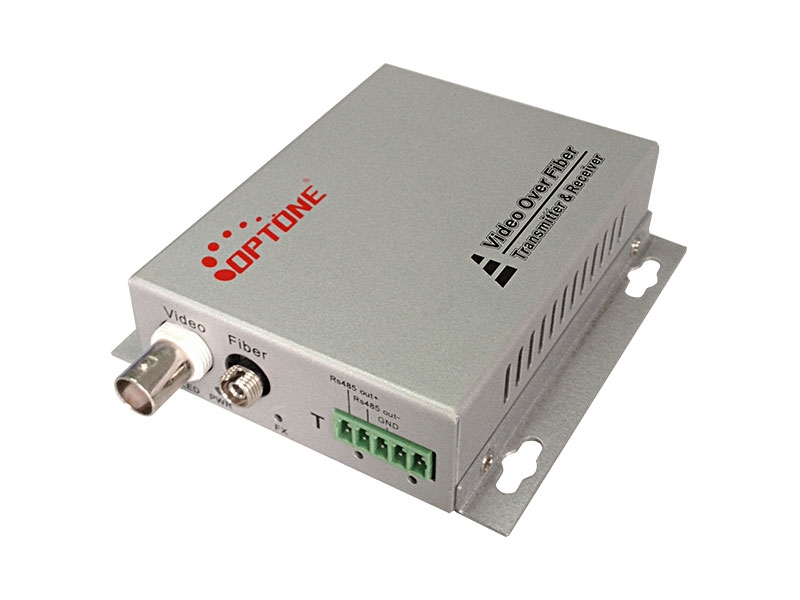

OPTseries video optical transceiver adopts the advanced digital video and opticalfiber transmission technology, and implement the real-time transmission &synchronization, no-distortion and high quality 1-channel video signal on thesingle fiber. 1-channel video optical transceiver adopts the full digital videonon-compression transmission technology and high quality video effect, whichcan meet the user’s requirements; the play-and-plug design makes theinstallation more convenient and easier, and it is unnecessary to implement thespot adjustment; its optical module and core circuit adopts the importedcomponents that have high stability, and all optical & electricalinterfaces conform to the international standards, which is applied to thedifferent working environment. This optical transceiver with video statusindication can monitor the normal operation of system.
    ●Card type or independent structure, which is applied tocentralized management 2.5U chassis
    ●8/10-bit digital code and non-compression type videotransmission
    ●Support any high-resolution video signal
    ●5Hz-10MHz video channel
    ●Automatic compatible PAL, NTSC and SECAM video system
    ●With APC circuit, constant input optical power, and largedynamic range
    ●Kilomega optical fiber transmission, large capacity, andeasy to upgrade
    ●Power supply and other parameter state indication, whichcan monitor the operation condition of system
    ●Support no-damage regenerative trunk of video
    ●Advanced self-adapting technology, and it is unnecessary toimplement the adjustment of spot electrics or optics when using
    ●Industry-grade design and modularization design make theequipment reliable and flexible
    OpticalFeature
    Transfer Distance: up to 120km
    Connectors: ST/PC, FC/PC optional
    Wavelength: 1310nm/1550nm
    VideoFeature
    Video Interface: BNC
    Video input/output impedance: 75Ω (unbalanced)
    Video input/output Voltage: 1VP - P (peak value),Max 1.2Vpp
    Video Bandwidth: 10MHz
    Video sampling: 15MHz high speed sampling
    Video digit bit width: 8/10 bit
    Differential gain: （ 10%-90%APL） DG <1%( Typical value)
    Differential phase: （ 10%-90%APL） DP <0.8<>°( Typical value)
    Video SNR: S/N ≥ 70dB （Maximum optical link path loss）
    AudioFeatures
    Audio interface: Forward Direction, Reverse Direction orBi-directional Audio
    Interface terminal: Standard industrial connectingterminals
    Audio input/output electric level typical: 0dBm
    Audio input/output impedance: 600Ω (balanced/unbalanced)
    Audio input/output amplitude: 2VP-P(peak value)
    Audio bandwidth: 20Hz～20kHz
    Sample rate: 58.6K
    Nonlinear distortion coefficient: ≤1%
    Audio SNR: S/N≥85db
    DataFeatures
    Interface：Standard industrialconnecting terminals
    Controlling Equipment： PTZ decoder,Keyboard ,data interface of Matrix, High speed dome camera, industrial equipment
    Interface Signals: RS-485(2 lines), RS232, RS422 and so on
    AlarmFeatures
    Interface：standard industrialconnecting terminals ( Alarm, Switch, Remote control )
    Alarm/switch input signals: any active or passivealarm/switch input, supporting passive switch
    Alarm/switch output signals: any active or passivealarm/switch output, supporting relay contact output
    Current: Low current, High-current and high-voltage can useabove 1A/12V
    EthernetFeatures
    Interface Speed Rate: 10/100Mbit/s Auto-adaptation, thedefault is 100MBPS working condition
    Interface Type: RJ-45
    Supporting Agreements: IEEE802.3U 100Base-TX, 10/100M
    Communication Working format: Full-duplex or half-duplex
    TelephoneFeatures
    Physical Interface: RJ-11 Connector Jack
    Voice Bandwidth: 8KHZ
    Operating Mode: Point-to-point hotline, programcontrolled  switch/extension mode
    GeneralParameter
    Operating Temperature: -40 ℃～+85 ℃
    Storage Temperature: -45 ℃～+95 ℃
    Relative humidity: 0～95%(Non-condensing)
    Power Voltage: AC85-260v/50Hz
    MTBF：≥105 hours
    Housing: Metal enclosure
    Model No. Description
    OPT-S1V-T/RF 1 Channel Video, FC
    OPT-S1V1D-T/RF 1 Channel Video + 1 Channel Data, FC
    OPT-S1V1D1A-T/RF 1 Channel Video + 1 Channel Data + 1 Channel Audio, FC

    Note:
    1) Theinterface can be ST or FC, according to the different requirements fromcustomers
    2) Thefiber optic transmission distance can be ordered. (40km, 60km, 80km)
    3) V=video, D=data, A=audio, K=switch/alarm, E=Ethernet, P=phone
    4) 20=20km, 40=40km, 60=60km, 80=80km
    5) S=Single-mode, M=Multi-mode
