Video over Fiber

< >

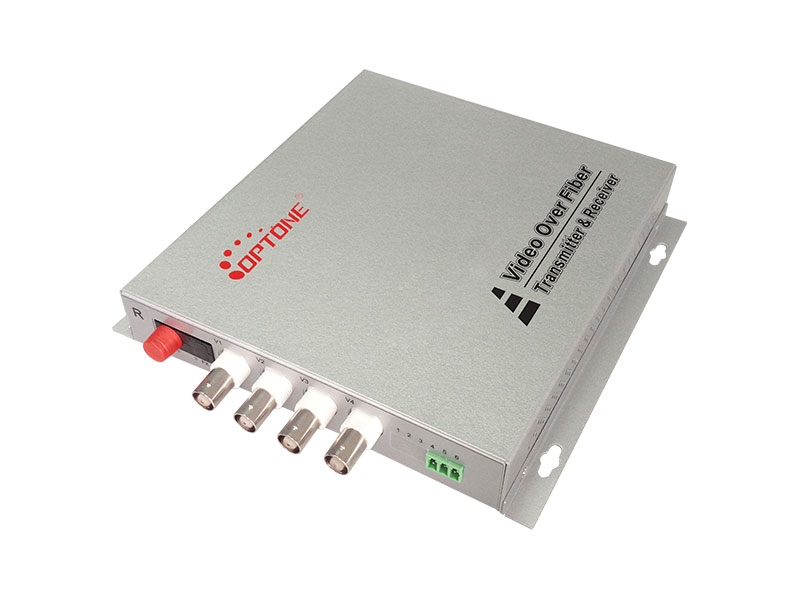

4 Channel Video+Data+Audio

OPTseries video optical transceiver adopts the advanced digital video and opticalfiber transmission technology, and implement the real-time transmission &synchronization, no-distortion and high quality 4-channel video signal on thesingle fiber. 4-channel video optical transceiver adopts the full digital videonon-compression transmission technology and high quality video effect, whichcan meet the user’s requirements; the play-and-plug design makes theinstallation more convenient and easier, and it is unnecessary to implement thespot adjustment; its optical module and core circuit adopts the importedcomponents that have high stability, and all optical & electricalinterfaces conform to the international standards, which is applied to thedifferent working environment. This optical transceiver with video statusindication can monitor the normal operation of system.

●Card type or independent structure, which is applied tocentralized management 4U chassis

●8/10-bit digital code and non-compression type videotransmission

●Support any high-resolution video signal

●5Hz-10MHz video channel

●Automatic compatible PAL, NTSC and SECAM video system

●With APC circuit, constant input optical power, and largedynamic range

●Kilomega optical fiber transmission, large capacity, andeasy to upgrade

●Power supply and other parameter state indication, whichcan monitor the operation condition of system

●Support no-damage regenerative trunk of video

●Advanced self-adapting technology, and it is unnecessary toimplement the adjustment of spot electrics or optics when using

●Industry-grade design and modularization design make theequipment reliable and flexible

OpticalFeature	Transfer Distance: up to 120km Connectors: ST/PC, FC/PC optional Wavelength: 1310nm/1550nm
VideoFeature	Video Interface: BNC Video input/output impedance: 75Ω (unbalanced) Video input/output Voltage: 1VP - P (peak value),Max 1.2Vpp Video Bandwidth: 10MHz Video sampling: 15MHz high speed sampling Video digit bit width: 8/10 bit Differential gain: （ 10%-90%APL） DG <1%( Typical value) Differential phase: （ 10%-90%APL） DP <0.8<>°( Typical value) Video SNR: S/N ≥ 70dB （Maximum optical link path loss）
AudioFeatures	Audio interface: Forward Direction, Reverse Direction orBi-directional Audio Interface terminal: Standard industrial connectingterminals Audio input/output electric level typical: 0dBm Audio input/output impedance: 600Ω (balanced/unbalanced) Audio input/output amplitude: 2VP-P(peak value) Audio bandwidth: 20Hz～20kHz Sample rate: 58.6K Nonlinear distortion coefficient: ≤1% Audio SNR: S/N≥85db
DataFeatures	Interface：Standard industrialconnecting terminals Controlling Equipment： PTZ decoder,Keyboard ,data interface of Matrix, High speed dome camera, industrial equipment Interface Signals: RS-485(2 lines), RS232, RS422 and so on
AlarmFeatures	Interface：standard industrialconnecting terminals ( Alarm, Switch, Remote control ) Alarm/switch input signals: any active or passivealarm/switch input, supporting passive switch Alarm/switch output signals: any active or passivealarm/switch output, supporting relay contact output Current: Low current, High-current and high-voltage can useabove 1A/12V
EthernetFeatures	Interface Speed Rate: 10/100Mbit/s Auto-adaptation, thedefault is 100MBPS working condition Interface Type: RJ-45 Supporting Agreements: IEEE802.3U 100Base-TX, 10/100M Communication Working format: Full-duplex or half-duplex
TelephoneFeatures	Physical Interface: RJ-11 Connector Jack Voice Bandwidth: 8KHZ Operating Mode: Point-to-point hotline, programcontrolled switch/extension mode
GeneralParameter	Operating Temperature: -40 ℃～+85 ℃ Storage Temperature: -45 ℃～+95 ℃ Relative humidity: 0～95%(Non-condensing) Power Voltage: AC85-260v/50Hz MTBF：≥105 hours Housing: Metal enclosure

Model No.	Description
OPT-S4V-T/RF	4 Channel Video, FC
OPT-S4V1D-T/RF	4 Channel Video + 1 Channel Data, FC
OPT-S4V1D1A-T/RF	4 Channel Video + 1 Channel Data + 1 Channel Audio, FC

Note:

1) Theinterface can be ST or FC, according to the different requirements fromcustomers

2) Thefiber optic transmission distance can be ordered. (40km, 60km, 80km)

3) V=video, D=data, A=audio, K=switch/alarm, E=Ethernet, P=phone

4) 20=20km, 40=40km, 60=60km, 80=80km

5) S=Single-mode, M=Multi-mode
