Direct Attach Cable

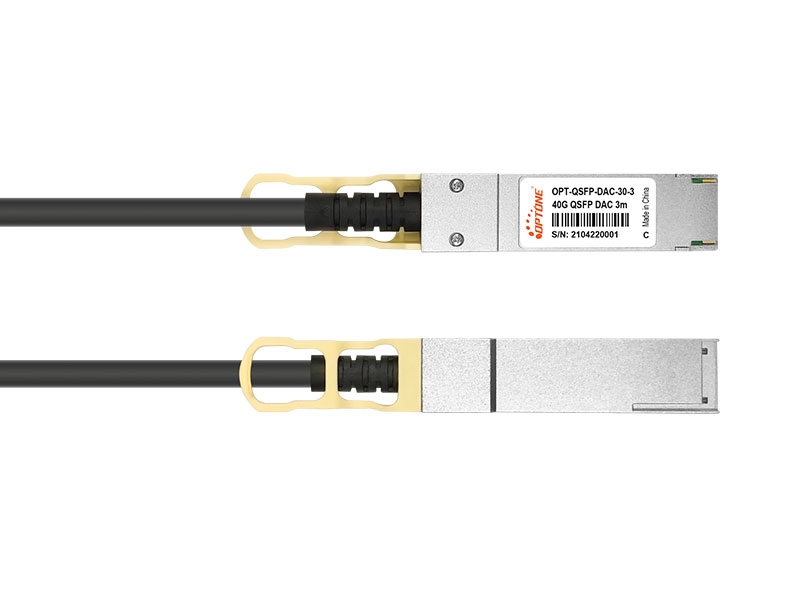

40G QSFP+ DAC

QSFP+ (Quad Small Form-factor Pluggable Plus) Cable Assemblies are suitable for very short distances and offer a highly cost-effective way to establish a 40-Gigabit link between QSFP+ ports of QSFP+ switches within racks and across adjacent racks. QSFP+ cables are used for 40 GbE and Infniband standards, to maximize performance.
    ●4-channel full-duplex passive copper cable
    ●SFF-8436 compliant QSFP+ connectors
    ●SFF-8636 compliant I2C management interface
    ●IEEE 802.3ba 40GBASE-CR4 compliant
    ●Data rate up to 40Gbps (4x 10Gbps)
    ●Copper link length up to 5m (passive limiting)
    ●Low power consumption: 0.02W (typ.)
    ●Excellent signal integrity and low insertion loss
    ●Operating case temperature range: 0°C to +70°C
    Applications
    ●40G Ethernet 40GBASE-CR4
    ●SAS, servers, hubs, switches and routers
    Model No. Description
    OPT-QSFP+-DAC-30-P1 1 meter 40G QSFP+ Passive Copper Cable 30AWG
    OPT-QSFP+-DAC-30-P2 2 meter 40G QSFP+ Passive Copper Cable 30AWG
    OPT-QSFP+-DAC-30-P3 3 meter 40G QSFP+ Passive Copper Cable 30AWG
    OPT-QSFP+-DAC-28-P5 5 meter 40G QSFP+ Passive Copper Cable 28AWG
    OPT-QSFP+-DAC-24-P10 10 meter 40G QSFP+ Passive Copper Cable 24AWG
    File Name : Format: Size: Download:
    OPT-QSFP+-DAC PDF 511.96 KB
