Active Optical Cable

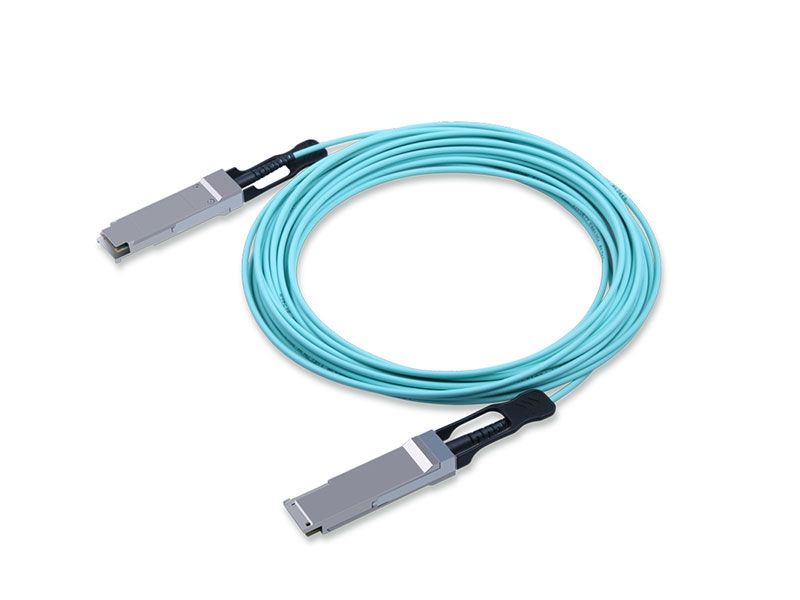

40G QSFP+ AOC

QSFP active optic cables are a high performance, low power consumption, long reach interconnect solution supporting 40G Ethernet, fiber channel and PCIe. It is compliant with the QSFP MSA and IEEE P802.3ba 40GBASE-SR4. Optone QSFP AOC is an assembly of 4 full-duplex lanes, where each lane is capable of transmitting data at rates up to 10Gb/s, providing an aggregated rate of 40Gb/s.
    ● 4 channels full-duplex 850nm parallel active optical cable
    ● Transmission data rate up to 10.3Gbps per channel
    ● 4 channels 850nm VCSEL array
    ● 4 channels PIN photo-detector array
    ● SFF-8436 QSFP+ compliant
    ● Hot-pluggable electrical interface
    ● Differential AC-coupled high-speed data interface
    ● Up to 300m on OM3 MMF
    ● Low power consumption < 1.5W
    ● Operating case temperature range 0°C to +70°C
    ● 3.3V power supply voltage
    Applications
    ●Infinibandtransmission at 4ch SDR, DDR and QDR
    ●40GBASE-SR440G Ethernet
    ●DataCenters
    Model No. Description
    OPT-QSFP+-AOC-3 3 meter 40G QSFP+ Active Optical Cable
    OPT-QSFP+-AOC-5 5 meter 40G QSFP+ Active Optical Cable
    OPT-QSFP+-AOC-10 10 meter 40G QSFP+ Active Optical Cable
    OPT-QSFP+-AOC-20 20 meter 40G QSFP+ Active Optical Cable
    OPT-QSFP+-AOC-300 300 meter 40G QSFP+ Active Optical Cable
    File Name : Format: Size: Download:
    OPT-QSFP+-AOC PDF 750.98 KB
