Optical Modules

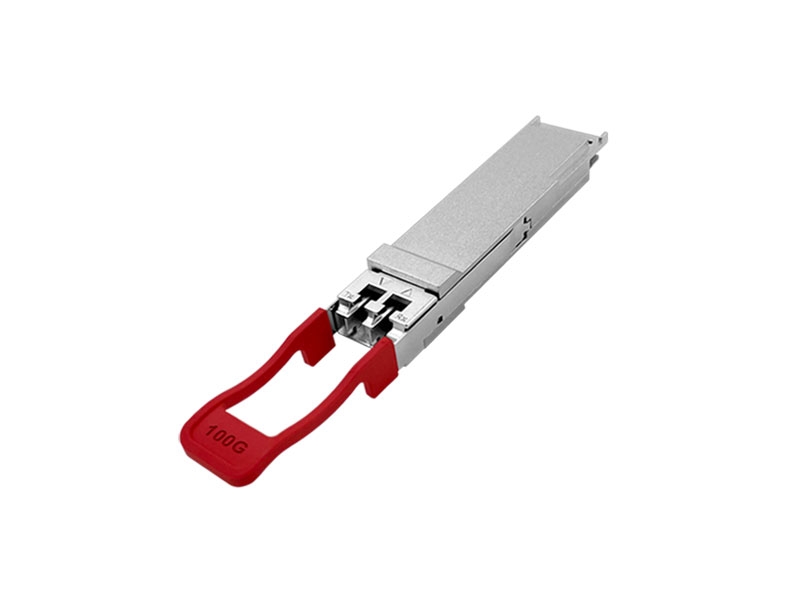

100G QSFP28

100G QSFP28 series includes SR4,LR4,ER4 and ZR4,using LC or MPO receptacle,with the features of QSFP28 MSA Compliant, IEEE802.3bm Compliant, low power consumption and high reliability,suitable for 100G data center network and OTN network.
    ●Compliant with 100GBASE-LR4
    ●Support line rates from 103.125 Gbps to 111.81 Gbps
    ●Integrated LAN WDM TOSA / ROSA for up to 10 km reach over SMF
    ●Digital Diagnostics Monitoring Interface
    ●Duplex LC optical receptacle
    ●No external reference clock
    ●Electrically hot-pluggable
    ●Compliant with QSFP28 MSA with LC connector
    ●Case operating temperature range:0°C to 70°C
    ●Power dissipation < 3.5 W
    Application
    ●High-speed interconnects within and between switches, routers and transport equipment
    ●Server-Server Clusters, Super-computing interconnections
    ●Proprietary backplanes
    ●Interconnects rack-to-rack, shelf-to-shelf, board-to-board, board-to-optical backplane
    ●100GBASE-SR4
    ●100GBASE-LR4
    ●100GBASE-LR4 Lite
    ●100GBASE-ER4 Lite
    ●100GBASE-ER4
    ●4WDM-10
    ●4WDM-20
    ●4WDM-40
    ●FR
    ●DR
    ●CWDM4
    ●OUT4
    Model Rate Wavelength Distance Optical power Sensitivity Other
    QSFP28-100G-SR4 100G 850nm 100m -8.4~-2.4dBm <-10.3dBm MPO/MMF
    QSFP28-100G-PSM4 100G 1310nm 2km -6~2dBm <-10.1dBm MPO/SMF
    QSFP28-100G-CWDM4 100G CWDM4 2km -6.5~2.5dBm <-10dBm 2xLC/SMF
    QSFP28-100G-LR4 100G LWDM4 10km -4.3~4.5dBm <-10.6dBm 2xLC/SMF
    QSFP28-100G-ER4 100G LWDM4 40km -2.5~6.5dBm <-18.5dBm 2xLC/SMF
    QSFP28-100G-ZR4 100G LWDM4 80km 2~6.5dBm <-28dBm 2xLC/SMF
