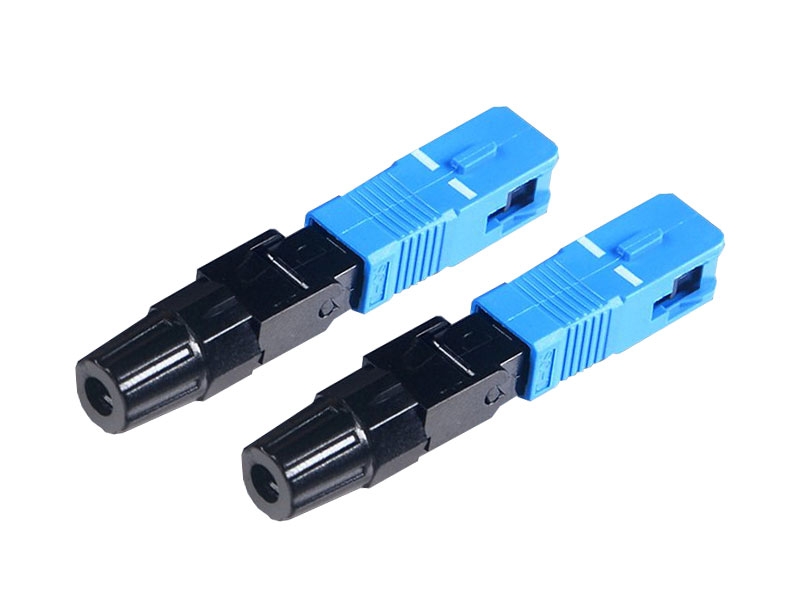

Fast Connector

OPT-FC60 Optical Fiber Fast Connector take use of the United States based on innovative plastic1000/1000 material compared to other manufacturers of material more quality, embedded a 60mmembedded fiber (grinding) to ensure the length of the uniform, but also to ensure the length of thecut fiber. The stability of the insertion and return loss is ensured by using the 1 core of theconcentric degree. When assembled, the FIS index of the United States was added to the match, andthe temperature range was wide. The oil separation rate was zero, and it had good oxidationresistance and long-term stability. Can be customized according to customer demand for differenttypes of products.
    Applications
    ●FTTH fiber optic terminal for the opening
    ●Connection box, cabinet, box, etc.
    ●Recovery and maintenance of accidents such as broken fiber
    ●Local area network, wide area network, data and video transmission
    ●Construction and maintenance of terminal user optical fiber access
    ●Optical fiber access for mobile base station
    Optical Fiber Diameter 125 um (657A & 657B)
    Tight Buffer Diameter 250um
    Fiber Mode Single Mode, Multi Mode
    Connector Type SC (UPC or APC)
    Operation Time 100s ( No Fiber Cut)
    Insert Loss ≤0.3dB ( 1310nm & 1550nm)
    Return Loss ≤-50dB
    Fastening Strength of Naked Fiber >5 N
    Fastening Strength of Naked Fiber  Holder >10 N
    Tensile Strength >20 N
    Using Temperature -40 ~ +85℃
    Online Tensile Strength (20 N) IL ≤ 0.5dB    RL ≤5dB
    Mechanical Durability (500 Times) IL ≤ 0.5dB    RL ≤5dB
    Drop-off Test( Drop-off height 4m,  once per direction, totally 3 times) IL ≤ 0.5dB    RL ≤5dB
    Atmospheric pressure requirements 62kPa~106kPa
    Relative humidity requirement ≤95%(+30℃)
    Fast Connector Length 60mm/53.5mm
