Optical Modules

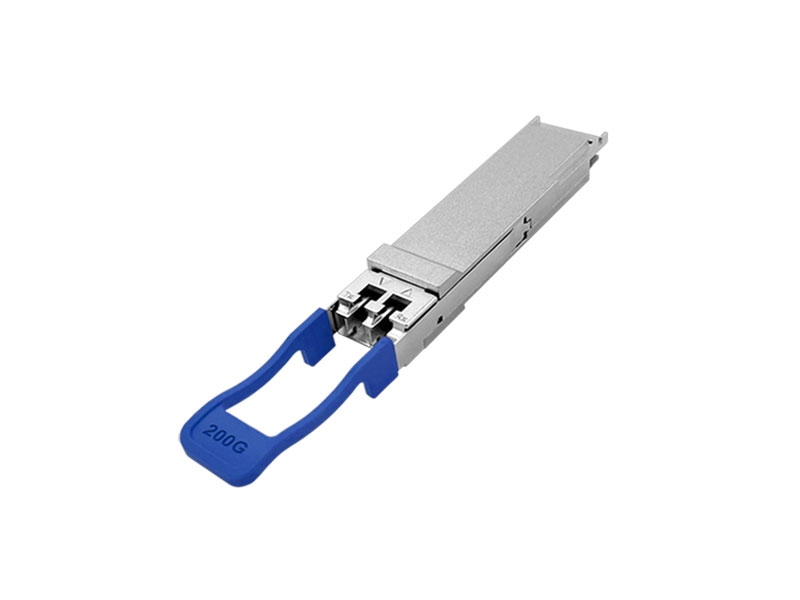

200G QSFP56

Optone 200G QSFP56 transceivers are addressing the technical challenges of achieving high speed and low cost datacenter. They are using 4x50Gb/s PAM4 channels to achieve a 200GE connectivity suitable for switch interconnectivity. This transceiver consists a transmitter/receiver unit operating on a set of 4 wavelengths on the ITU G.694.2 CWDM grid near 1300nm or 4 channels 850nm wavelength. The electrical interface of the module is compliant with the 200GAUI-4 interface as defined by IEEE 802.3bs/cd.
    ●Hot-pluggable QSFP56 form factor
    ●Built-in 200G PAM4 DSP
    ●Supports 212.5Gb/s aggregate bit rates
    ●200GAUI-4 electrical interface
    ●Built-in digital diagnostic functionality
    ●Commercial case temperature range of 0°C to 70°C
    Application
    ●200G Ethernet
    ●Data Centers
    ●5G Back-haul
    Model Description Rate Wavelength Distance Connector
    QSFP56-200G-SR4 QSFP56 SR4 200G 850nm MMF 100m MPO
    QSFP56-200G-DR4 QSFP56 DR4 200G 1310nm SMF 500m MPO
    QSFP56-200G-FR4 QSFP56 FR4 200G CWDM4 SMF 2km 2xLC
    QSFP56-200G-LR4 QSFP56 LR4 200G LWDM4 SMF 10km 2xLC
