Media Converter

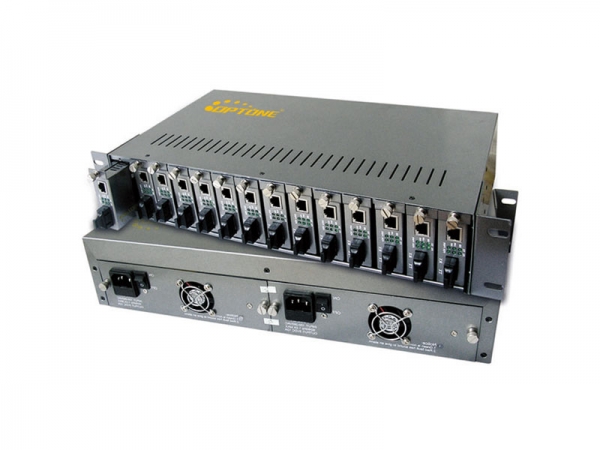

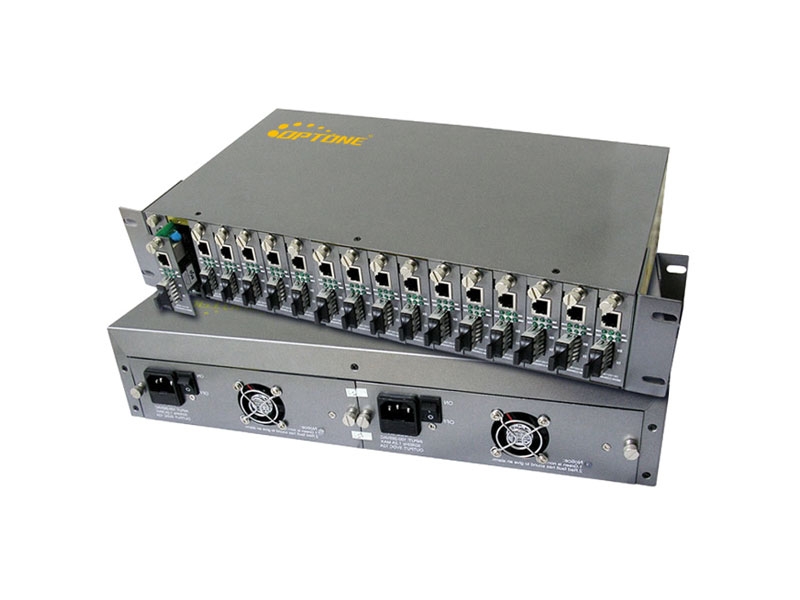

14/16 Slots Chassis (OPT-R14/16)

The Optone unmanaged chassis have two types, the OPT-R14 provides 14 slots for standalone 10/100M or 10/100/1000M media converter, the OPT-R16 provides 16 slots for card 10/100M or 10/100/1000M media converter. the chassis is equipped with dual cooling fans and redundant power supplies (optional). designed for continuous operation Its Plug-and-Play and Hot-Swap features allow installing/removing the converter unit without powering off the chassis.
    ●Accommodates up to 14 or 16 media converters operating under different protocols
    ●Supports two load sharing, hot swappable power supplies
    ●Two serviceable high volume cooling fans
    ●LED status panel with fan and slot and power LED
    ●Supports slot power isolation
    ●14 slot Supports 10/100Base-TX/FX or 10/100/1000Base-TX/FX standalone serial converters
    ●16 slot Supports 10/100Base-TX/FX or 10/100/1000Base-TX/FX card serial converters
    ●Available in AC 100-240V with AC Socket or DC -48V with terminal block
    OPT-R14 OPT-R16
    Capacity 14 slots (Standalone) 16 slots (Card-type)
    LED Indicators / Power Status
    Power Requirement
    Input: AC 100-240V or DC -48V
    Output: Per slot Power 5V DC
    Physical Characteristics
    Housing: Metal enclosure
    Dimensions: 426 x 234 x 91mm (D x W x H)
    Weight: 6kg
    Environmental Limits
    Operating Temperature: 0°C to 50°C
    Storage Temperature: -20°C to 70°C
    Operating Humidity: 10% to 90% RH
    Storage Humidity: 5% to 90% RH
    Warranty 3 years
    Model No. Description
    OPT-R14-2 14 slots Chassis Rack for standalone Media Converter, Dual power, 220V AC
    OPT-R14-2 14 slots Chassis Rack for standalone Media Converter, Dual power, -48V DC
    OPT-R16-2 16 slots Chassis Rack for card-type Media Converter, Dual power, 220V AC
    OPT-R16-2 16 slots Chassis Rack for card-type Media Converter, Dual power, -48V DC
    File Name : Format: Size: Download:
    OPT-R14/16 PDF 180.05 KB
