Industrial PoE Switch

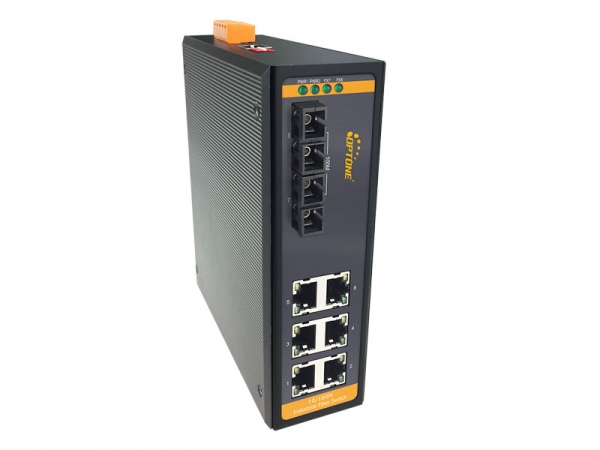

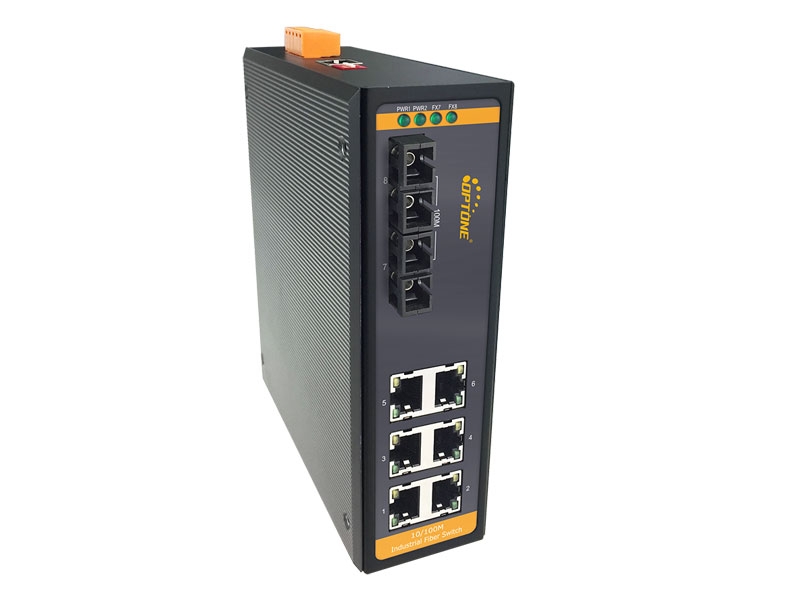

Managed Industrial 6*10/100M TX(PoE) and 2*100M FX (OPT-IES1026MP series)

OPT-IES1026M series adopts the OPT-Ring Ring network technology, the user can easily set Redundance Ring Network in order to increase network reliability, moreover also support a variety of network management functions, such as: 802.1Q VLAN, QOS, IGMP Static Multicast, Port Trunk, Port Mirroring, ect. They can be applied extensively in wind power, distribution network automation, subway PIS, power SCADA, wastewater treatment, metallurgy, intelligent transportation, rail transit, and many other industries.
    ●Support OPT-Ring Redundance Ring Network technology
    ●Support IEEE802.1Q VLAN setting, effective control of the broadcast domain.
    ●Support IEEE802.1p-QoS function
    ●IEEE 802.3at, IEEE 802.3af PoE standard compliance
    ●Support PD detection and PD classification
    ●Support IGMP Static Multicast, Port Trunk, Port Mirroring, ect.
    ●Extends distances ranging from 2km (multi-mode fiber) to 120km (single mode fiber)
    ●Supports DIN-Rail and hang wall mounting
    ●Support 8k MAC address
    ●Support dual power supply backup
    ●IP40 protection class
    Interface
    6 x Ethernet+PoE port (RJ45) 10/100Base-Tx
    2 x Optical port (1x9) 100Base-Fx
    1 x Console port (RJ45)
    Optical Port
    Available for 1310nm and 1550nm Single mode, and 1310nm Multi mode
    Transfer Distance: up to 120km
    Connectors: SC, ST optional
    Fiber core: 8.3μm, 8.7μm, 9μm and 10μm on single-mode fiber; 50, 62.5 and 100μm on multi-mode fiber
    Ethernet Port
    Available speed: force 10Mbps, force 100Mbps and auto-detective 10/100Mbps Full-Duplex and Half-Duplex auto-negotiation
    Connectors: RJ-45 Connector; MDI/MDI-X connection auto-sensing
    Standard
    IEEE802.3 (10Base-T)
    IEEE802.3u (100Base-TX/FX)
    IEEE802.3x (Flow control)
    IEEE802.1Q (VLAN)
    IEEE802.1p (Class of Service)
    IEEE 802.1w (RSTP)
    SNMP v1/v2c (Simple Network Management Protocol)
    IEEE802.3af (Power over Ethernet Standard)
    IEEE802.3at (Power over Ethernet Enhancements Standard)
    Switch Properties
    MAC Table: 8K
    Packet Buffer: 1Mbit
    Switching Delay: <5μs
    LED Indicators Power Status, Speed Status, FX Link/Act, TX Link/Act
    PoE Specification
    Power Output: PoE 48V DC
    PoE Power Supply type: End-Span
    Power Pin Assignment: 1/2(+), 3/6(-)
    PoE Power Budget: Each port provides max 30W feed power
    Power Requirement
    Input: 48VDC
    Consumption：MAX 5.8W(no PD), 185.8W(full PD)
    Reverse Connection Protection: Support
    Redundancy Protection: Support
    Dual Power: Support
    Physical Characteristics
    Housing: Metal enclosure
    Protection Class: IP40
    Dimensions: 53 x 165 x 145mm
    Weight: 0. 9kg
    Installation: DIN-Rail or Panel mounting
    Environmental Limits
    Operating Temperature: -40°C to 85°C
    Storage Temperature: -40°C to 85°C
    Operating Humidity: 10% to 95% RH (non-condensing)
    Storage Humidity: 5% to 95% RH (non-condensing)
    Industrial Standard
    EMI: FCC/CE/LVD/EMC
    EMS:
    IEC61000-4-2 (ESD): ±8kV (contact), ±15kV (air)
    IEC61000-4-3 (RS): 10V/m (80MHz-2GHz)
    IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV
    IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV
    IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)
    IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)
    Shock: IEC 60068-2-27
    Free Fall: IEC 60068-2-32
    Vibration: IEC 60068-2-6
    Warranty 5 years
    Model No. Description
    OPT-IES1026MPM02 6*10/100Base-Tx(PoE) to 2*100Base-Fx, Multi mode, 2Km, SC/ST, with Managed
    OPT-IES1026MPS20 6*10/100Base-Tx(PoE) to 2*100Base-Fx, Single mode, 20Km, SC/ST, with Managed
    OPT-IES1026MPW20 6*10/100Base-Tx(PoE) to 2*100Base-Fx, Bi-Directional, 20Km, SC/ST, with Managed
