Industrial PoE Switch

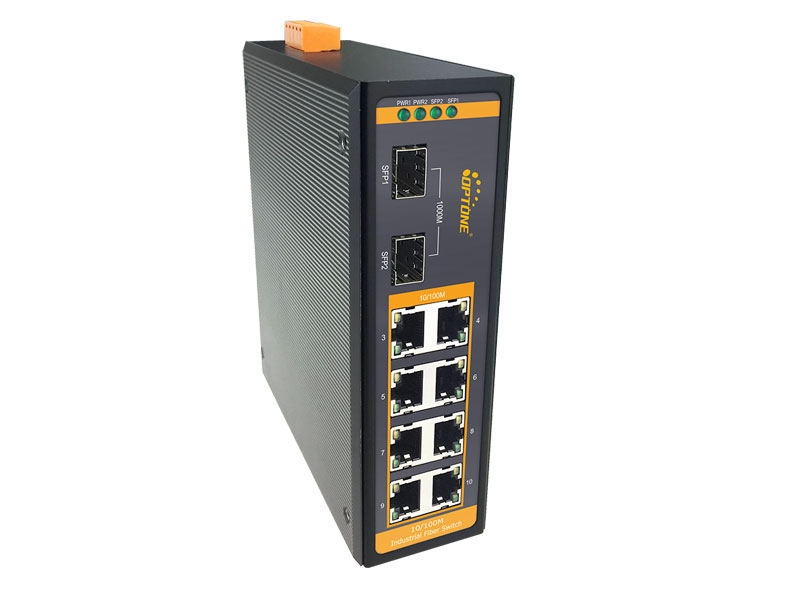

Industrial 8*10/100M TX(PoE) and 2*GE SFP (OPT-IES1038P)

OPT-IES1038P is OPTONE produced unmanaged 10-port PoE switches, providing 2 Gigabit Ethernet fiber optional port and 8 10/100Base-TX PoE ports compliant with IEEE802.3af and IEEE802.3at. While transmitting data over the cable, each PoE port can output 30 watts to PoE terminals directly, eliminating the need for additional wiring. OPT-IES1038P supports wide operating temperature range from -40°C to 85°C, metal housing with IP40 protection class and redundant power inputs, becoming an economical and harsh environment resistant solution for the ITS, video surveillance and other automation applications.
    ●Complies with IEEE 802.3, IEEE 802.3u, IEEE802.3z, IEEE802.3ab
    ●IEEE 802.3at, IEEE 802.3af PoE standard compliance
    ●Support PD detection and PD classification
    ●Supports auto MDI/MDIX function
    ●Supports DIN-Rail and hang wall mounting
    ●Status LED for easy monitoring of device status
    ●Maximum frame size of 1632 bytes
    ●Support 8k MAC address
    ●Support dual power supply backup
    ●IP40 protection class
    Interface
    8 x Ethernet+PoE port (RJ45) 10/100Base-Tx
    2 x Optical port (SFP) 1000Base-Fx
    Optical Port
    Available for 1310nm and 1550nm Single mode, and 850nm Multi mode
    Transfer Distance: up to 120km
    Connectors: SFP
    Fiber core: 9/125μm on single-mode fiber; 50/125μm and 62.5μm on multi-mode fiber
    Ethernet Port
    Cable: Cat 5/5e/6 UTP cable
    Available speed: force 10Mbps, force 100Mbps and auto-detective 10/100Mbps Full-Duplex and Half-Duplex auto-negotiation
    Connectors: RJ-45 Connector; MDI/MDI-X connection auto-sensing
    Standard
    IEEE802.3 (10Base-T)
    IEEE802.3u (100Base-TX)
    IEEE802.3ab (1000Base-T)
    IEEE802.3z (1000Base-SX/LX/CX/T)
    IEEE802.3x (Flow control)
    IEEE802.3af (Power over Ethernet Standard)
    IEEE802.3at (Power over Ethernet Enhancements Standard)
    Switch Properties
    MAC Table: 8K
    Packet Buffer: 1Mbit
    Switching Delay: <5μs
    LED Indicators Power Status, Speed Status, FX Link/Act, TX Link/Act
    PoE Specification
    Power Output: PoE 48V DC
    PoE Power Supply type: End-Span
    Power Pin Assignment: 1/2(+), 3/6(-)
    PoE Power Budget: Each port provides max 30W feed power
    Power Requirement
    Input: 48VDC
    Consumption:MAX 6.3W(no PD), 246.3W(full PD)
    Overload Protection: Support
    Reverse Connection Protection: Support
    Redundancy Protection: Support
    Physical Characteristics
    Housing: Metal enclosure
    Protection Class: IP40
    Dimensions: 53 x 165 x 145mm(Excluding the connector, DIN rail and component for panel mounting)
    Weight: 0.85kg
    Installation: DIN-Rail or Panel mounting
    Environmental Limits
    Operating Temperature: -40°C to 85°C
    Storage Temperature: -40°C to 85°C
    Operating Humidity: 10% to 95% RH (non-condensing)
    Storage Humidity: 5% to 95% RH (non-condensing)
    Industrial Standard
    EMI: FCC/CE/LVD/EMC
    EMS:
    IEC61000-4-2 (ESD): ±8kV (contact), ±15kV (air)
    IEC61000-4-3 (RS): 10V/m (80MHz-2GHz)
    IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV
    IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV
    IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)
    IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)
    Shock: IEC 60068-2-27
    Free Fall: IEC 60068-2-32
    Vibration: IEC 60068-2-6
    Warranty 5 years
    Model No. Description
    OPT-IES1038P 8*10/100Base-Tx(PoE) and 2*GE SFP Fiber port
    Optional SFP
    SFP-SX-MM-0205I SFP,1.25G,850nm,0.5km,LC,工业级
    SFP-LX-SM-0220I SFP,1.25G,1310nm,20km,LC,工业级
    SFP-LX-SM-0240I SFP,1.25G,1310nm,40km,LC,工业级
    SFP-ZX-SM-0280I SFP,1.25G,1550nm,80km,LC,工业级
    File Name : Format: Size: Download:
    OPT-IES1038P PDF 176.83 KB
