Industrial PoE Switch

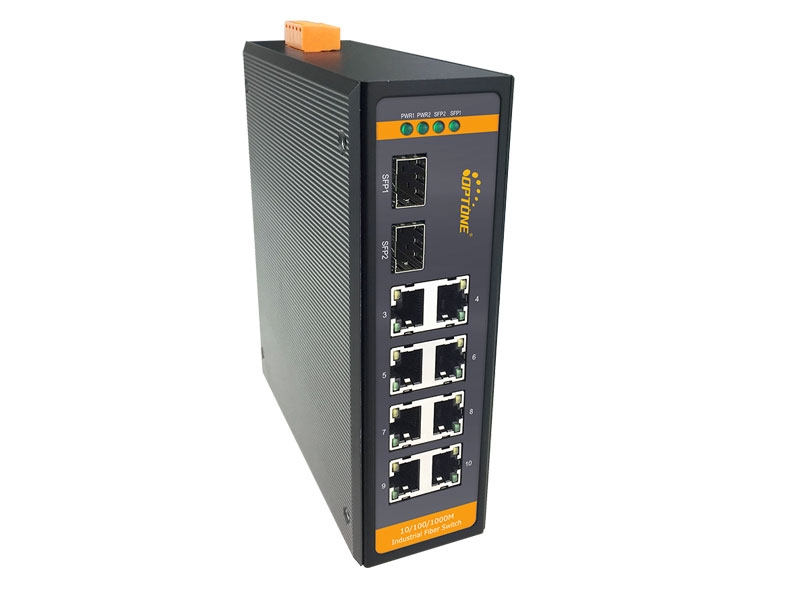

Industrial 8*10/100/1000M TX(PoE) and 2*GE SFP (OPT-IES2028P)

OPT-IES2028P is OPTONE produced unmanaged 10-port PoE switches, providing 2 Gigabit Ethernet fiber optional port and 8 10/100/1000Base-TX PoE ports compliant with IEEE802.3af and IEEE802.3at. While transmitting data over the cable, each PoE port can output 30 watts to PoE terminals directly, eliminating the need for additional wiring.
    ●Both standard and wide operating temperature
    ●Complies with IEEE 802.3, IEEE 802.3u/z/ab/z
    ●IEEE 802.3at/af PoE standard compliance
    ●Support PD detection and PD classification
    ●Extends distances up to 120km
    ●Maximum frame size of 1632 bytes
    ●Supports auto MDI/MDIX function
    ●Supports DIN-Rail and hang wall mounting
    ●Status LED for easy monitoring of device status
    ●Support 8k MAC address
    ●Support dual power supply backup
    ●IP40 protection class
    Interface
    8 x Ethernet+PoE port (RJ45) 10/100/1000Base-Tx
    2 x Optical port (SFP) 1000Base-Fx
    Optical Port
    Available for 1310nm and 1550nm Single mode, 850nm Multi mode
    Transfer Distance: up to 120km
    Connectors: SFP
    Fiber core: 9/125μm on single-mode fiber, 50/125μm and 62.5μm on multi-mode fiber
    Ethernet Port
    Available speed: force 10Mbps, force 100Mbps, force 1000Mbps and auto-detective 10/100/1000Mbps Full-Duplex and Half-Duplex auto-negotiation
    Connectors: RJ-45 Connector; MDI/MDI-X connection auto-sensing
    Standard
    IEEE802.3 (10Base-T)
    IEEE802.3u (100Base-TX/FX)
    IEEE802.3ab (1000Base-T)
    IEEE802.3z (1000Base-SX/LX/CX/T)
    IEEE802.3af (Power over Ethernet Standard)
    IEEE802.3at (Power over Ethernet Enhancements Standard)
    Switch Properties
    MAC Table: 8K
    Packet Buffer: 1Mbit
    Switching Delay: <5μs
    LED Indicators Power Status, Speed Status, FX Link/Act, TX Link/Act
    PoE Specification
    Power Output: PoE 48V DC
    PoE Power Supply type: End-Span
    Power Pin Assignment: 1/2(+), 3/6(-)
    PoE Power Budget: Each port provides max 30W feed power
    Power Requirement
    Input: 48V DC
    Consumption:MAX 13W(no PD), 253W(full PD)
    Reverse Connection Protection: Support
    Redundancy Protection: Support
    Physical Characteristics
    Housing: Metal enclosure
    Protection Class: IP40
    Dimensions: 53 x 165 x 145mm
    Weight: 0. 9kg
    Installation: DIN-Rail or Panel mounting
    Environmental Limits
    Operating Temperature: -40°C to 85°C
    Storage Temperature: -40°C to 85°C
    Operating Humidity: 10% to 95% RH (non-condensing)
    Storage Humidity: 5% to 95% RH (non-condensing)
    Industrial Standard
    EMI: FCC/CE/LVD/EMC
    EMS:
    IEC61000-4-2 (ESD): ±8kV (contact), ±15kV (air)
    IEC61000-4-3 (RS): 10V/m (80MHz-2GHz)
    IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV
    IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV
    IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)
    IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)
    Shock: IEC 60068-2-27
    Free Fall: IEC 60068-2-32
    Vibration: IEC 60068-2-6
    Warranty 5 years
    Model No. Description
    OPT-IES2028P 8*10/100/1000Base-Tx(PoE) to 2*GE SFP Fiber ports
    Optional SFP
    SFP-SX-MM-0205I SFP,1.25G,850nm,0.5km,LC,Industrial
    SFP-LX-SM-0220I SFP,1.25G,1310nm,20km,LC,Industrial
    SFP-LX-SM-0240I SFP,1.25G,1310nm,40km,LC,Industrial
    SFP-ZX-SM-0280I SFP,1.25G,1550nm,80km,LC,Industrial
    File Name : Format: Size: Download:
    OPT-IES2028P PDF 178.38 KB
