Industrial PoE Switch

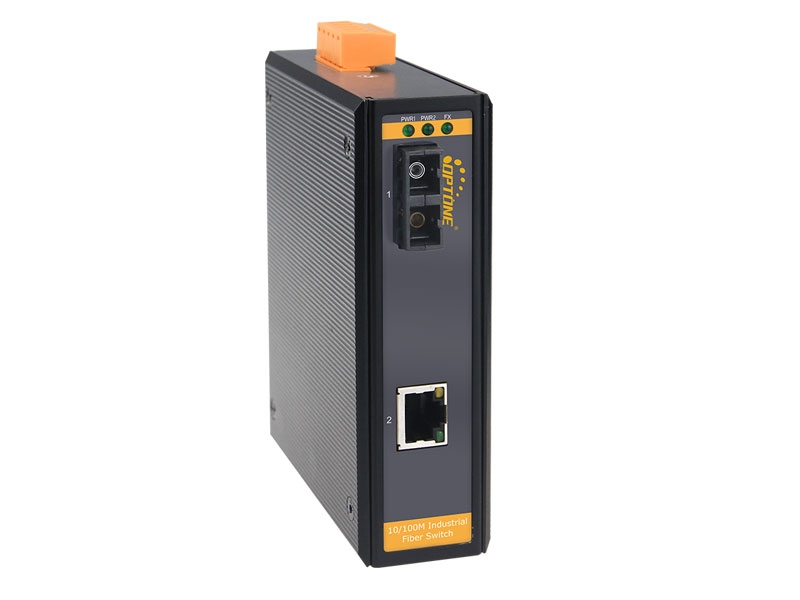

Industrial 1*10/100M TX(PoE) and 1*100M FX (OPT-IES1011P series)

OPT-IES1011P is OPTONE produced unmanaged PoE switches, providing 1 Fast Ethernet fiber optional port and 1 10/100Base-TX PoE ports compliant with IEEE802.3af and IEEE802.3at. While transmitting data over the cable, each PoE port can output 30 watts to PoE terminals directly, eliminating the need for additional wiring. OPT-IES1011P supports wide operating temperature range from -40°C to 85°C, metal housing with IP40 protection class and redundant power inputs, becoming an economical and harsh environment resistant solution for the ITS, video surveillance and other automation applications.
    ●Green Ethernet solution with ultra low power consumption design
    ●Both standard and wide operating temperature
    ●Complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3x auto-negotiation
    ●IEEE 802.3at, IEEE 802.3af PoE standard compliance
    ●Supports auto MDI/MDIX function
    ●Status LED for easy monitoring of device status
    ●Supports up to 9K Byte Jumbo frames
    ●Support 2k MAC address
    ●Supports DIN-Rail and hang wall mounting
    ●Support dual power supply backup
    ●IP40 protection class
    Interface
    1 x Ethernet+PoE port (RJ45) 10/100Base-Tx
    1 x Optical port (1x9) 100Base-Fx
    Optical Port
    Available for 1310nm and 1550nm Single mode, and 1310nm Multi mode
    Transfer Distance: up to 120km
    Connectors: SC, ST, FC optional
    Fiber core: 8.3μm, 8.7μm, 9μm and 10μm on single-mode fiber; 50, 62.5 and 100μm on multi-mode fiber
    Ethernet Port
    Cable: Cat 5/5e/6 UTP cable
    Available speed: force 10Mbps, force 100Mbps and auto-detective 10/100Mbps Full-Duplex and Half-Duplex auto-negotiation
    Connectors: RJ-45 Connector; MDI/MDI-X connection auto-sensing
    Standard
    IEEE802.3 (10Base-T)
    IEEE802.3u (100Base-TX)
    IEEE802.3x (Flow control)
    IEEE802.3af (Power over Ethernet Standard)
    IEEE802.3at (Power over Ethernet enhancements Standard)
    Switch Properties
    MAC Table: 2K
    Packet Buffer: 1Mbit
    Switching Delay: <5μs
    LED Indicators Power, Status, FX Link/Act, TX Link/Act
    PoE Specification
    Power Output: PoE 48V DC
    PoE Power Supply type: End-Span
    Power Pin Assignment: 1/2(+), 3/6(-)
    PoE Power Budget: Each port provides max 30W feed power
    Power Requirement
    Input: 48V-57V DC
    Consumption:MAX 3.6W(no PD), 33.6W(full PD)
    Overload Protection: Support
    Reverse Connection Protection: Support
    Redundancy Protection: Support
    Physical Characteristics
    Housing: Metal enclosure
    Protection Class: IP40
    Dimensions: 33.5 x 118 x 86mm
    Weight: 0.36kg
    Installation: DIN-Rail or Panel mounting
    Environmental Limits
    Operating Temperature: -40°C to 85°C
    Storage Temperature: -40°C to 85°C
    Operating Humidity: 10% to 95% RH (non-condensing)
    Storage Humidity: 5% to 95% RH (non-condensing)
    Industrial Standard
    EMI: FCC/CE/LVD/EMC
    EMS:
    IEC61000-4-2 (ESD): ±8kV (contact), ±15kV (air)
    IEC61000-4-3 (RS): 10V/m (80MHz-2GHz)
    IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV
    IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV
    IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)
    IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)
    Shock: IEC 60068-2-27
    Free Fall: IEC 60068-2-32
    Vibration: IEC 60068-2-6
    Warranty 5 years
    Model No. Description
    OPT-IES1011PM02 10/100Base-Tx(PoE) to 100Base-Fx, Multi mode, 2Km, SC/ST optional
    OPT-IES1011PS20 10/100Base-Tx(PoE) to 100Base-Fx, Single mode, 20Km, SC/ST optional
    OPT-IES1011PW20 10/100Base-Tx(PoE) to 100Base-Fx, Bi-Directional, 20Km, SC/ST optional
