Industrial Ethernet Switch

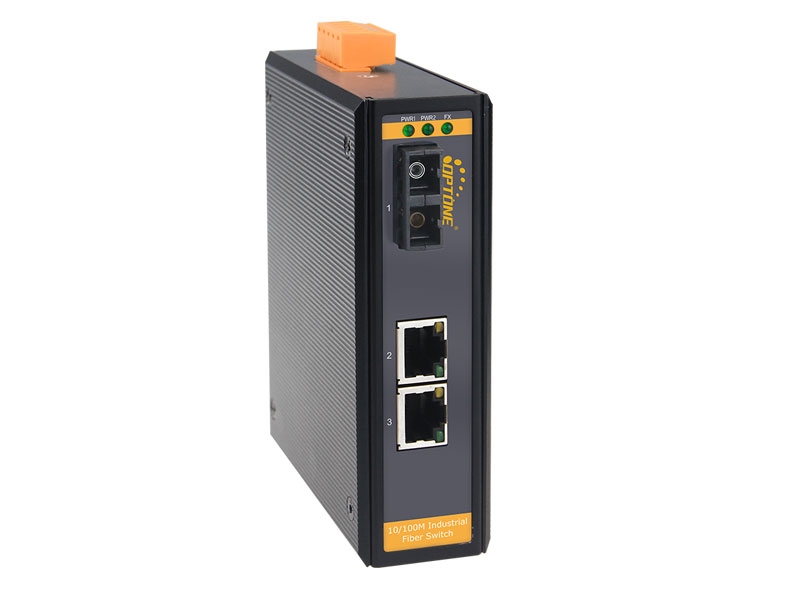

Industrial 2*10/100M TX and 1*100M FX (OPT-GY1012 series)

OPT-GY1012 series support IEEE 802.3 and IEEE802.3u with 10/100M full/half-duplex, MDI/MDI-X auto-sensing. The OPT-GY1012 switches provide 12~52VDC power supply. These switches are specially designed for harsh industrial environments certified by UL508 and UL Class 1 Div 2 certifications.
    ●Green Ethernet solution with ultra low power consumption design
    ●Both standard and wide operating temperature
    ●Complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3x auto-negotiation
    ●Extends distances ranging from 2km (multi-mode fiber) to 120km (single mode fiber)
    ●Supports auto MDI/MDIX function
    ●Status LED for easy monitoring of device status
    ●Maximum frame size of 2k bytes
    ●IP40 protection class
    Interface
    2 x Ethernet port (RJ45) 10/100Base-Tx
    1 x Optical port (1x9) 100Base-Fx
    Optical Port
    Available for 1310nm and 1550nm Single mode, and 1310nm Multi mode
    Transfer Distance: up to 120km
    Connectors: SC, ST, FC optional
    Fiber core: 8.3μm, 8.7μm, 9μm and 10μm on single-mode fiber; 50, 62.5 and 100μm on multi-mode fiber
    Ethernet Port
    Standard: IEEE802.3, IEEE802.3u, IEEE802.3x
    Available speed: force 10Mbps, force 100Mbps and auto-detective 10/100Mbps Full-Duplex and Half-Duplex   auto-negotiation
    Connectors: RJ-45 Connector; MDI/MDI-X connection auto-sensing
    Switch Properties
    MAC Table: 2K
    Packet Buffer: 1Mbit
    Switching Delay: <10μs
    Bandwidth: 1.6Gbps
    LED Indicators Power status, FX Link/Act, TX Link/Act
    Power Requirement
    Input: 12VDC~52VDC
    Consumption：3W
    Overload Protection: Support
    Reverse Connection Protection: Support
    Redundancy Protection: Support
    Physical Characteristics
    Housing: Metal enclosure
    Protection Class: IP40
    Dimensions: 33.5 x 118 x 86mm
    Weight: 0.36kg
    Installation: DIN-Rail or Panel mounting
    Environmental Limits
    Operating Temperature: -40°C to 85°C
    Storage Temperature: -40°C to 85°C
    Operating Humidity: 10% to 95% RH (non-condensing)
    Storage Humidity: 5% to 95% RH (non-condensing)
    Industrial Standard
    EMI: FCC/CE/LVD/EMC
    EMS:
    IEC61000-4-2 (ESD): ±8kV (contact), ±15kV (air)
    IEC61000-4-3 (RS): 10V/m (80MHz-2GHz)
    IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV
    IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV
    IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)
    IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)
    Shock: IEC 60068-2-27
    Free Fall: IEC 60068-2-32
    Vibration: IEC 60068-2-6
    Warranty 5 years
    Model No. Description
    OPT-GY1012M02 2*10/100Base-Tx to 100Base-Fx, Multi mode, 2Km, SC/ST/FC optional
    OPT-GY1012S20 2*10/100Base-Tx to 100Base-Fx, Single mode, 20Km, SC/ST/FC optional
    OPT-GY1012W20 2*10/100Base-Tx to 100Base-Fx, Bi-Directional, 20Km, SC/ST/FC optional
