Industrial Ethernet Switch

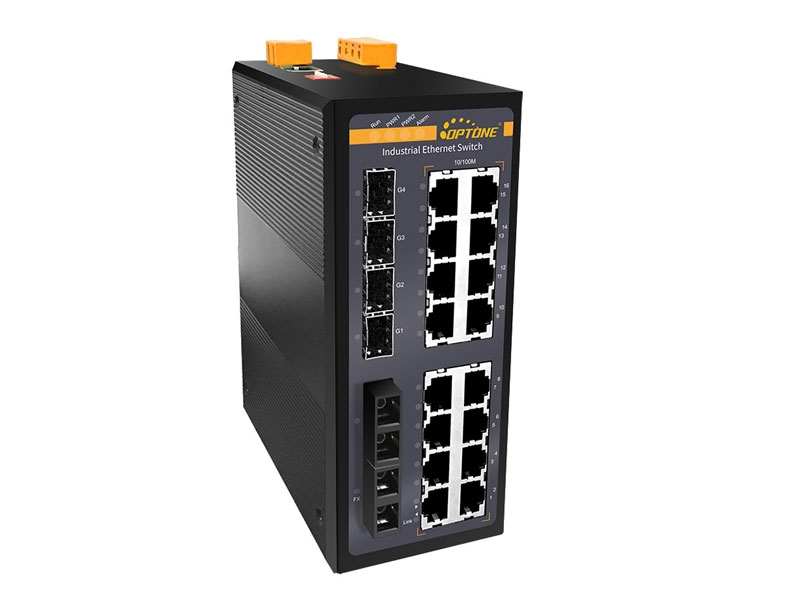

Industrial 16*10/100M TX + 4*GE SFP + 2*100M FX (OPT-IES1022 series)

The equipment is a series of green DIN-rail industrial Ethernet Switch with low power consumption. They can be applied extensively in wind power, distribution network automation, subway PIS, power SCADA, wastewater treatment, metallurgy, intelligent transportation, rail transit, and many other industries.
    ●Both standard and wide operating temperature
    ●Supports auto MDI/MDIX function
    ●Status LED for easy monitoring of device status
    ●Supports VLAN function
    ●Support power relay alarm output
    ●Support 8k MAC address
    ●Supports DIN-Rail and hang wall mounting
    ●Support dual power supply backup
    ●IP40 protection class
    OPT-IES1022-4G2F OPT-IES1022-4G OPT-IES1022-2F OPT-IES1022-16T
    Interface 4*GE SFP Fiber ports + 2*FE Fiber ports + 16*10/100M Ethernet ports 4*GE SFP Fiber ports + 16*10/100M Ethernet ports 2*FE Fiber ports + 16*10/100M Ethernet ports 16*10/100M Ethernet ports
    Optical Port
    100M Fiber Port：100Base-Fx 1x9，Connector optional
    1000M Fiber Port：1000Base-Fx SFP
    Transfer Distance: up to 120km
    Fiber core: 9/125μm on single-mode fiber, 50/125μm and 62.5μm on multi-mode fiber
    		 /
    Ethernet Port
    Available speed: force 10Mbps, force 100Mbps and auto-detective 10/100Mbps
    Duplex mode: Full-Duplex and Half-Duplex auto-negotiation
    Connectors: RJ-45 Connector; MDI/MDI-X connection auto-sensing
    Relay port 2 bits 7.62mm terminal block
    Standard
    IEEE802.3（10Base-T）
    IEEE802.3u（100Base-TX/FX）
    IEEE 802.3ab（1000Base-T）
    IEEE 802.3z（1000Base-SX/LX/CX/T）
    IEEE802.3x（Flow control）
    IEEE802.3（10Base-T）
    IEEE802.3u（100Base-TX/FX）
    IEEE802.3x（Flow control）
    Switch Properties
    MAC Table: 8K
    Packet Buffer: 4Mbit
    Switching Delay: <5μs
    LED Indicators Running Status, Power Status, Relay alarm, FX Link/Act, TX Link/Act
    Power Requirement
    Input: 12VDC~48VDC
    Input method：4 bits 7.62mm terminal block
    Reverse Connection Protection: Support
    Redundancy Protection: Support
    Dual Power: Support
    Physical Characteristics
    Housing: Metal enclosure
    Protection Class: IP40
    Dimensions: 70 x 160 x 130mm
    Weight: 1.1kg
    Installation: DIN-Rail and Panel mounting
    Environmental Limits
    Operating Temperature: -40°C to 85°C
    Storage Temperature: -40°C to 85°C
    Operating Humidity: 10% to 95% RH (non-condensing)
    Storage Humidity: 5% to 95% RH (non-condensing)
    Industrial Standard
    EMI: FCC/CE/LVD/EMC
    EMS: IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-16 (Common mode conduction)
    Shock: IEC 60068-2-27
    Free Fall: IEC 60068-2-32
    Vibration: IEC 60068-2-6
    Warranty 5 years
    Model No. Description
    OPT-IES1022-4G2F 16*10/100M Ethernet ports + 4*GE SFP Fiber ports + 2*FE Fiber ports
    OPT-IES1022-4G 16*10/100M Ethernet ports + 4*GE SFP Fiber ports
    OPT-IES1022-2F 16*10/100M Ethernet ports + 2*FE Fiber ports
    OPT-IES1022-16T 16*10/100M Ethernet ports
    Optional SFP
    SFP-SX-MM-0205I SFP，1.25G，850nm，0.5km，LC，Industrial
    SFP-LX-SM-0220I SFP，1.25G，1310nm，20km，LC，Industrial
    SFP-LX-SM-0240I SFP，1.25G，1310nm，40km，LC，Industrial
    SFP-ZX-SM-0280I SFP，1.25G，1550nm，80km，LC，Industrial
