Direct Attach Cable

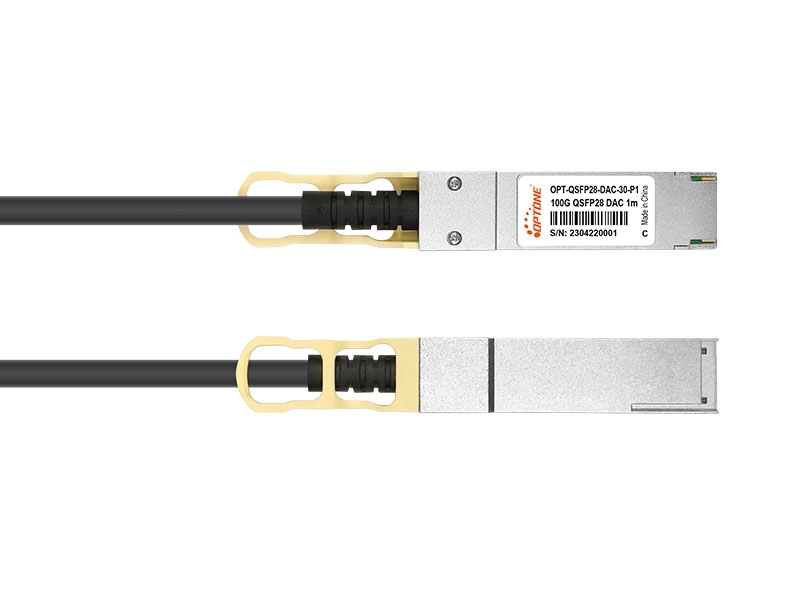

100G QSFP28 DAC

100G QSFP28 passive cable assembly products, based on 4 x25G or 4 x28G structure, the product can well satisfy the next generation 100G switches, servers, routers and other products of application requirements.QSFP28 cable adopts optimized design to reduce crosstalk and insertion loss, excellent signal integrity, fully conforms to the next generation 100G Ethernet and Infiniband EDR standards.
    ●4-channel full-duplex passive copper cable
    ●Data rate up to 100Gbps (4x 25Gbps)
    ●SFF-8665 compliant QSFP28 connectors
    ●SFF-8636 compliant I2C management interface
    ●IEEE 802.3bj 100GBASE-CR4 compliant
    ●Copper link length up to 5m (passive limiting)
    ●Hot Pluggable
    ●Low power consumption
    ●Excellent signal integrity, low insertion loss and low crosstalk
    ●Operating case temperature range: 0°C to +70°C
    ●Single 3.3V supply voltage
    ●RoHS compliant
    Applications
    ●100G Ethernet 100GBASE-CR4
    ●InfiniBand 4x EDR
    ●SAS, servers, hubs, switches and routers
    ●Data Center
    Model No. Description
    OPT-QSFP28-DAC-30-P1 1 meter 100G QSFP28 Passive Copper Cable 30AWG
    OPT-QSFP28-DAC-30-P2 2 meter 100G QSFP28 Passive Copper Cable 30AWG
    OPT-QSFP28-DAC-30-P3 3 meter 100G QSFP28 Passive Copper Cable 30AWG
    OPT-QSFP28-DAC-24-P5 5 meter 100G QSFP28 Passive Copper Cable 24AWG
