Media Converter

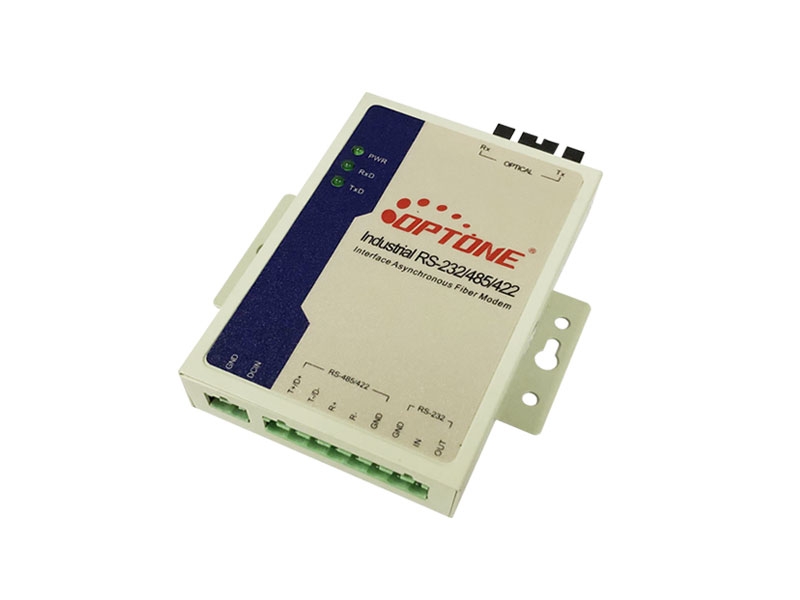

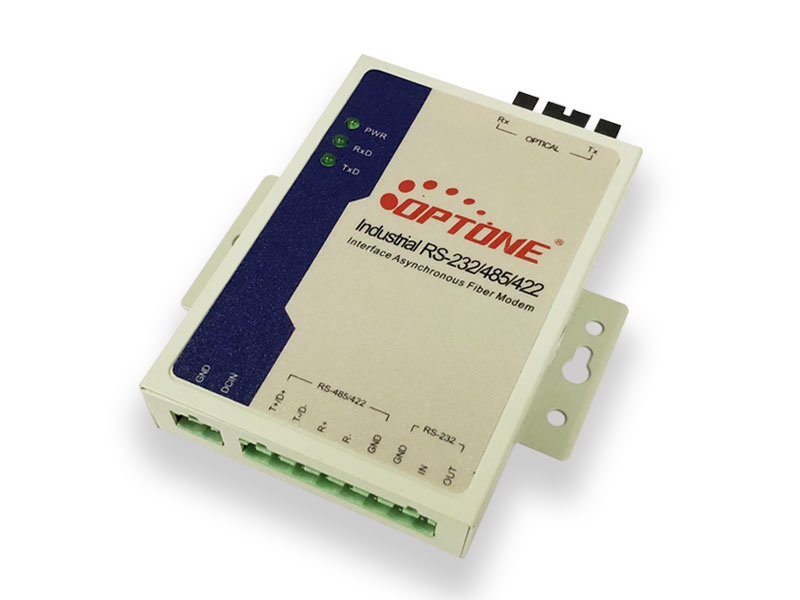

RS-232/482/422 Converter (OPT-277 series)

OPT-277 Series is one kind can offer RS-232/485/422 serial port carry transparent optic fiber modem of transmission to get end to user, no need patch cords set up, switch over automatically, and can detect and examine the signal speed automatically, zero delays time to transmit automatically. OPT-277 Series adopt optic fiber transmit, have isolate protection, data privacy is fine, working steady, data, such threats to communication equipment as the wave is welled up and interfered with electromagnetically that the effective one has prevented the abominable environment from being struck by lightning, can work in the abominable and dangerous environment reliably.
    ●Extend RS-232/485/422 transmission up to 120Km with single-mode
    ●Transmit asynchronously, point to point, speed reach 500Kbps
    ●Examine signal speed automatically, zero delay time
    ●Plug-and-Play(hot-pluggable, data format auto-sensing & self-adjusting)
    ●Support RS-232/485/422 interface type, but only one RS-232/ RS-485/ RS-422 port can be connected at a given time
    ●9~36VDC power supply input(2 bit terminal block)
    Interface
    1 x RS-232/485/422
    1 x Optical port (1x9) 100Base-Fx
    Optical Port
    Available for 1310nm and 1550nm Single mode, and 1310nm Multi mode
    Transfer Distance: up to 120km
    Connectors: SC, ST, or FC optional
    Fiber core: 8.3μm, 8.7μm, 9μm and 10μm on single-mode fiber; 50, 62.5 and 100μm on multi-mode fiber
    RS-232/485/422
    Standard: EIA RS-232C, RS-485, RS422 standard
    RS-232 signal: OUT(TX), IN(RX), GND
    RS-422 signal: T+, T-, R+, R-, GND
    RS-485 signal: D+, D-, GND
    Working mode: Asynchronism, point to point or multi point, 2 wire half-duplex,4 wire full duplex
    Baud rate:0~115.2Kbps, auto test serial signal rate detect signal speed automatically, zero delay time
    Transfer distance: RS-485/422 side:1.2Km(9600bps), RS-232 side: no less than 5m
    Max number of drops: 128 nodes(RS-485/422)
    Port protect: 600W surge protection, 15KV ESD protection
    Power Requirement
    Power input: 9~36VDC power input(2 bit terminal block)
    Consumption: 120mA
    Physical Characteristics
    Housing: Metal enclosure
    Dimensions: 100 x 69 x 22mm
    Weight: 230g
    Environmental Limits
    Operating Temperature: -10°C to 60°C
    Storage Temperature: -40°C to 85°C
    Humidity: 5% to 95% RH (non-condensing)
    Model No. Description
    OPT-277M Multi-Mode, 2Km, 9V-36VDC, SC, FC or ST, optional
    OPT-277S Single-Mode, 20Km, 9V-36VDC, SC, FC or ST, optional
