Industrial Ethernet Switch

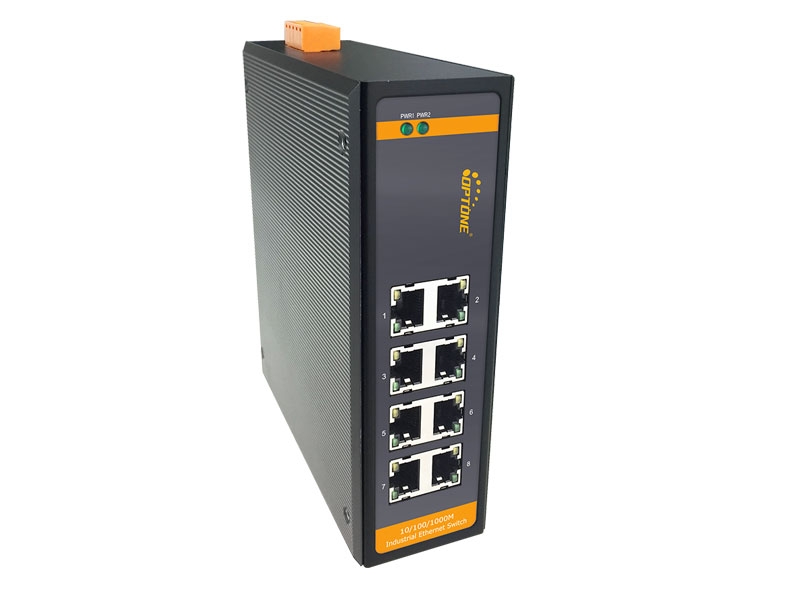

Industrial 8*10/100/1000M TX (OPT-IES2008)

OPT-IES2008 series are equipped with 8 Gigabit Ethernet ports, making them ideal for applications that demand high bandwidth. OPT-IES2008 series are one of Optone new ultra low power consumption Green Ethernet solutions. Its full load power consumption is 11W which enables not only power electricity saving, but also a longer life span for the devices. OPT-IES2008 full Gigabit unmanaged switches are powered with 12~48VDC power supply, and its operation temperature ranges from -40 to 85°C (-40 to 185°F). They are specially designed for harsh industrial environments and their EMC performance reaches industrial level 4. OPT-IES2008 series can be installed easily on a DIN-Rail or panel mounting distribution boxes.
    ●Green Ethernet solution with ultra low power consumption design
    ●Both standard and wide operating temperature
    ●Complies with IEEE 802.3, IEEE 802.3u, IEEE802.3z, IEEE802.3ab, IEEE 802.3z auto-negotiation
    ●Supports auto MDI/MDIX function
    ●Supports DIN-Rail and hang wall mounting
    ●Status LED for easy monitoring of device status
    ●Maximum frame size of 1632 bytes
    ●Support 8k MAC address
    ●IP40 protection class
    Interface
    8 x Ethernet port (RJ45) 10/100/1000Base-Tx
    Ethernet Port
    Standard: IEEE802.3, IEEE802.3u, IEEE 802.3ab, IEEE802.3z
    Available speed: force 10Mbps, force 100Mbps, force 1000Mbps and auto-detective 10/100/1000Mbps Full-Duplex and Half-Duplex auto-negotiation
    Connectors: RJ-45 Connector; MDI/MDI-X connection auto-sensing
    Switch Properties
    MAC Table: 8K
    Packet Buffer: 1Mbit
    Switching Delay: <5μs
    LED Indicators Power Status, Speed Status, FX Link/Act, TX Link/Act
    Power Requirement
    Input: 12VDC~48VDC
    Consumption:MAX 11W
    Reverse Connection Protection: Support
    Redundancy Protection: Support
    Physical Characteristics
    Housing: Metal enclosure
    Protection Class: IP40
    Dimensions: 53 x 165 x 145mm
    Weight: 0.85kg
    Installation: DIN-Rail or Panel mounting
    Environmental Limits
    Operating Temperature: -40°C to 85°C
    Storage Temperature: -40°C to 85°C
    Operating Humidity: 10% to 95% RH (non-condensing)
    Storage Humidity: 5% to 95% RH (non-condensing)
    Industrial Standard
    EMI: FCC/CE/LVD/EMC
    EMS:
    IEC61000-4-2 (ESD): ±8kV (contact), ±15kV (air)
    IEC61000-4-3 (RS): 10V/m (80MHz-2GHz)
    IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV
    IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV
    IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)
    IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)
    Shock: IEC 60068-2-27
    Free Fall: IEC 60068-2-32
    Vibration: IEC 60068-2-6
    Warranty 5 years
    Model No. Description
    OPT-IES2008 8*10/100/1000Base-Tx, Industrial
    File Name : Format: Size: Download:
    OPT-IES2008 PDF 250.17 KB
