Fiber Ethernet Switch

< >

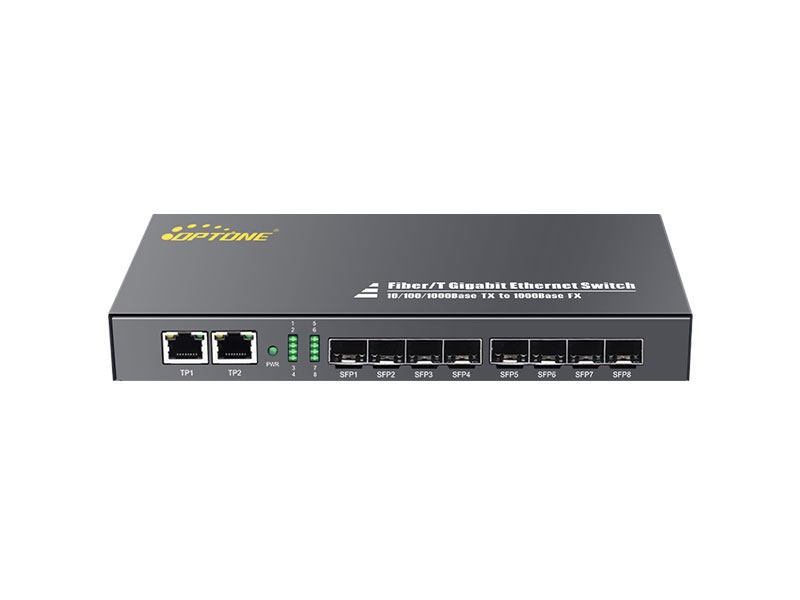

210/100/1000M TX and 8GE SFP (OPT-2810)

The Switch provides a high-performance switch architecture that is capable of providing the non-blocking switch fabric and wire-speed throughput as high as 32Gbps, which greatly simplifies the tasks of upgrading the LAN for catering to increasing bandwidth demands. Besides, the Flow Control function of the switch enables routers and servers to directly connect to the Switch for fast and reliable data transfer.

●Complies with IEEE802.3, IEEE802.3u/ab/z standard

●Provides 2-port 10/100/1000M RJ45 and 8-port SFP fiber ports

●Supports auto duplex(HDX/FDX) auto MDI/MDIX function

●SFP port supports 1000BASE-SX/LX modules

●Supports 802.3x flow control

●Status LED for easy monitoring of device status

●High stability and reliability

Interface	2 x Ethernet port (RJ45) 10/100/1000Base-Tx 8 x Optical port (SFP) 1000Base-Fx
Optical Port	Available for 1310nm and 1550nm Single mode, 850nm Multi mode Transfer Distance: up to 120km Connectors: SFP Fiber core: 9/125μm on single-mode fiber; 50/125μm and 62.5/125μm on multi-mode fiber
Ethernet Port	Cable: Cat 5/5e/6 cable Available speed: force 10Mbps, force 100Mbps , force 1000Mbps and auto-detective 10/100/1000Mbps. Full-Duplex and Half-Duplex auto-negotiation Connectors: RJ-45 Connector; MDI/MDI-X connection auto-sensing
Standard	IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX/FX) IEEE802.3ab (1000Base-T) IEEE802.3z (1000Base-SX/LX/CX/T) IEEE802.3x (Flow control)
Switch Properties	MAC Table: 8K Backplane bandwidth: 32G Switching Delay: <5μs
LED Indicators	Power Status, FX Link/Act, TX Link/Act
Power Requirement	Input: 12V DC
Physical Characteristics	Housing: Metal enclosure Dimensions: 217 x 115 x 28mm Weight: 0.6kg
Environmental Limits	Operating Temperature: -10°C to 70°C Storage Temperature: -20°C to 70°C Operating Humidity: 10% to 90% RH (non-condensing) Storage Humidity: 5% to 90% RH (non-condensing)
Warranty	3 years

Model No.	Description
OPT-2810	210/100/1000Base-Tx to 8GE SFP Fiber ports
Optional SFP
SFP-SX-MM-0205	SFP，1.25G，850nm，0.5km，2xLC
SFP-LX-SM-0220	SFP，1.25G，1310nm，20km，2xLC
SFP-LX-SM-0240	SFP，1.25G，1310nm，40km，2xLC
SFP-ZX-SM-0280	SFP，1.25G，1550nm，80km，2xLC

File Name :	Format:	Size:	Download:
OPT-2810	PDF	174.20 KB
